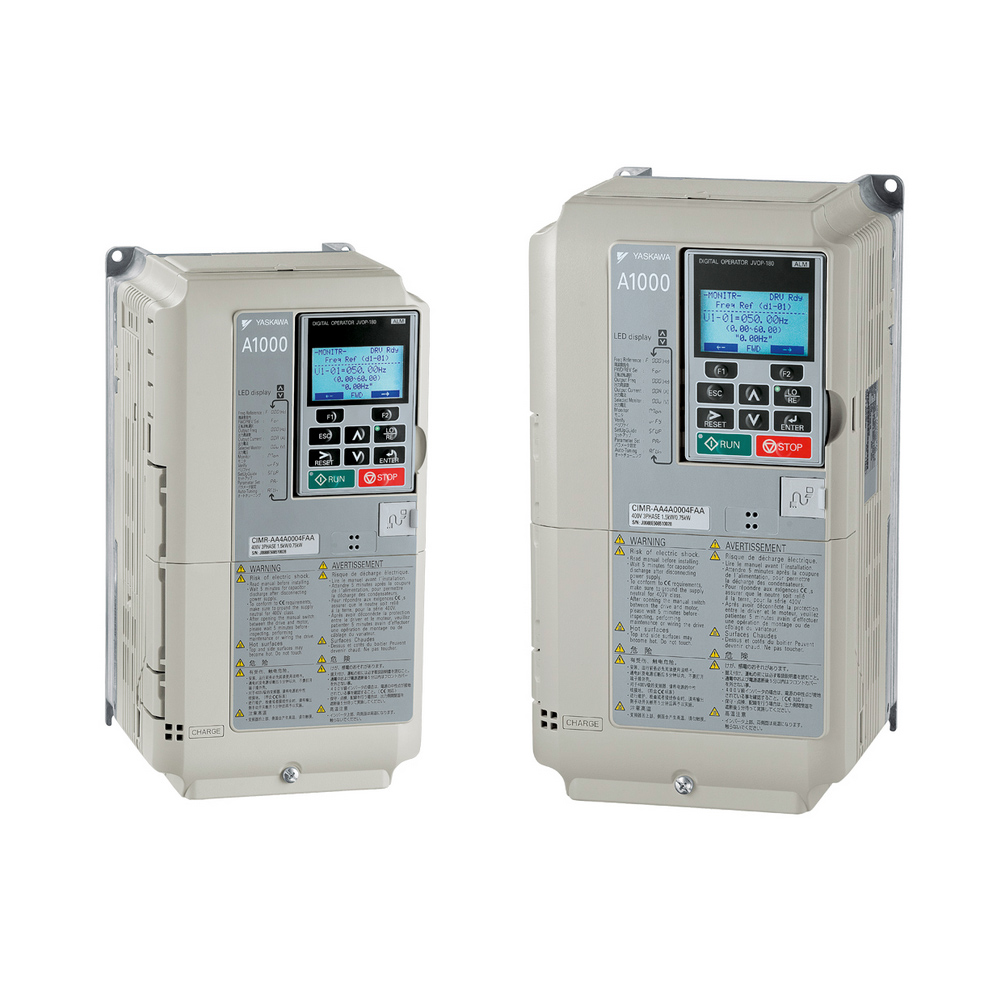

A1000 Drive 3/4 – 1000 HP
The A1000 is a full featured drive, providing outstanding quality, performance, flexibility, and environmental friendliness through 1000HP. Enjoy network communications, feedback, and expandable I/O to control anything from simple fans and pumps to complex machines. For new installations or retrofits, the A1000 provides a single robust solution, regardless of your application.
A1000 Drive Features Highlights:
- Closed or open loop vector control for outstanding regulation, torque production, and position control capability.
- Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature.
- High Frequency Injection enables high precision open loop control of Interior Permanent Magnet Motors.
- Fast acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand.
- High Slip Braking reduces installation cost and the need for dynamic braking resistors
- Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost.
- DriveWizard computer software and Application Sets for easy configuration.
- Auxiliary Control Power Unit maximizes production time and efficiency by maintaining network communication while main power is removed.
- Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL2, PLd, Category 3).
- Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers.
- USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives.
- Removable terminal board with configuration storage provides convenience of configuration backup.
- Made with RoHS compliant materials.
- Integrated DC Reactor (standard on 30HP and larger) for input harmonic reduction.
- Kinetic Energy Braking allows drive to remain in control during momentary power losses.
- Integrated 12 Pulse version provides a cost effective solution for low harmonics.
- Flange version provides NEMA 12 backside integrity when mounting with heatsink external.
A1000 Drive Specifications
|
ITEM
|
SPECIFICATION
|
|---|---|
| Overload Capacity | 150% for 60 sec. (HD), 120% for 60 sec. (ND) |
| Output Frequency | 0~400 Hz (higher frequencies available with custom software) |
| Control Methods | Open and Closed Loop Current Vector; Open and Closed Loop V/f |
| Motor Types | Induction Surface Permanent Magnet (excluding 600V class) Interior Permanent Magnet (excluding 600V class) |
| Protective Design | IP20/NEMA1/FLANGE (NEMA 12 backside) |
| Ambient Operating Temperature | -10 to +50°C (Chassis Installation) -10 to +40°C (Chassis with zero side clearance, or Type 1) |
| Braking Transistor | Standard through 50HP (ND), 40HP (HD) |
| Global Certification | UL, CSA, CE, C-Tick, RoHS |
| Standard I/O | (8) multi-function digital inputs (24Vdc) (3) multi-function analog inputs (0 +/- 10 VDC, 4-20 mA) (1) multi-function pulse inputs (1) fault relay output (form C) (3) multi-function relay outputs (form A) (2) multi-function analog output (0 +/- 10 VDC, 4-20mA) (1) multi-function pulse output |
| I/O Expansion | 3 Analog Inputs -10 to +10V, 13 bit plus sign, 4 to 20mA 16 Digital Inputs (+24V for BCD speed reference) 2 Analog Outputs (-10 to +10V, 11 bit magnitude) 8 Digital Outputs (6 transistor, 2 relay) |
| Feedback | Incremental Absolute (Stegmann, Heidenhain EnDat, Resolver) Resolver |
| Network Communication | Built-in: Modbus RTU, RS-422/485, 115 kbpsOptional: EtherNet IP, DeviceNet, Modbus TCP/IP, PROFINET, PROFIBUS-DP, MECHATROLINK-II |
| Speed Control Range | 1500:1 Closed Loop Vector (IM and PM Motors) 200:1 Open Loop Vector (IM Motors) 100:1 Open Loop Vector (PM Motors) |
| Speed Control Accuracy | £ 0.02%: Closed Loop Vector; ≤ 0.2%; Open Loop Vector |
| Speed Response | ≥ 60 Hz: Closed Loop Vector; ≥ 10 Hz: Open Loop Vector |
| Torque Response | ≥ 300 Hz: Closed Loop Vector |
| Function Block Diagrams | Up to 100 connections, 1ms program scan time |
A1000 Drive Models & Ratings
A1000 Drive 200-240V, 3-Phase, Protected Chassis/NEMA 1
|
DRIVE MODEL
|
NORMAL DUTY (ND)
|
HEAVY DUTY (HD)
|
ENCLOSURE
|
||
|---|---|---|---|---|---|
|
CURRENT
|
NOMINAL HP
|
CURRENT
|
NOMINAL HP
|
||
|
CIMR-AU2A0004FAA
|
3.5
|
3/4
|
3.2
|
3/4
|
NEMA 1
|
|
CIMR-AU2A0006FAA
|
6
|
1
|
5
|
1
|
|
|
CIMR-AU2A0008FAA
|
8
|
2
|
6.9
|
2
|
|
|
CIMR-AU2A0010FAA
|
9.6
|
2
|
8
|
2
|
NEMA 1
|
|
CIMR-AU2A0012FAA
|
12
|
3
|
11
|
3
|
|
|
CIMR-AU2A0018FAA
|
17.5
|
5
|
14
|
3
|
|
|
CIMR-AU2A0021FAA
|
21
|
7.5
|
17.5
|
5
|
NEMA 1
|
|
CIMR-AU2A0030FAA
|
30
|
10
|
25
|
7.5
|
|
|
CIMR-AU2A0040FAA
|
40
|
15
|
33
|
10
|
|
|
CIMR-AU2A0056FAA
|
56
|
20
|
47
|
15
|
NEMA 1
|
|
CIMR-AU2A0069FAA
|
69
|
25
|
60
|
20
|
|
|
CIMR-AU2A0081FAA
|
81
|
30
|
75
|
25
|
|
|
CIMR-AU2A0110FAA
|
110
|
40
|
85
|
30
|
NEMA 1
|
|
CIMR-AU2A0138FAA
|
138
|
50
|
115
|
40
|
|
|
CIMR-AU2A0169FAA
|
169
|
60
|
145
|
50
|
NEMA 1
|
|
CIMR-AU2A0211FAA
|
211
|
75
|
180
|
60
|
|
|
CIMR-AU2A0250AAA
|
250
|
100
|
215
|
75
|
Protected Chassis
|
|
CIMR-AU2A0312AAA
|
312
|
125
|
283
|
100
|
|
|
CIMR-AU2A0360AAA
|
360
|
150
|
346
|
125
|
Protected Chassis
|
| CIMR-AU2A0415AAA | 415 | 175 | 415 | 150 | |
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03 for proper sizing.
A1000 Drive 200-240V, 3-Phase, Flange
|
DRIVE MODEL
|
NORMAL DUTY (ND)
|
HEAVY DUTY (HD
|
ENCLOSURE1
|
||
|---|---|---|---|---|---|
|
CURRENT
|
NOMINAL HP
|
CURRENT
|
NOMINAL HP3
|
||
|
CIMR-AU2A0004UAA
|
3.5
|
3/4
|
3.2
|
3/4
|
Flange
|
|
CIMR-AU2A0006UAA
|
6
|
1
|
5
|
1
|
|
|
CIMR-AU2A0008UAA
|
8
|
2
|
6.9
|
2
|
|
|
CIMR-AU2A0010UAA
|
9.6
|
3
|
8
|
2
|
Flange
|
|
CIMR-AU2A0012UAA
|
12
|
3
|
11
|
3
|
|
|
CIMR-AU2A0018UAA
|
17.5
|
5
|
14
|
3
|
|
|
CIMR-AU2A0021UAA
|
21
|
7.5
|
17.5
|
5
|
Flange
|
|
CIMR-AU2A0030UAA
|
30
|
10
|
25
|
7.5
|
|
|
CIMR-AU2A0040UAA
|
40
|
15
|
33
|
10
|
|
|
CIMR-AU2A0056UAA
|
56
|
20
|
47
|
15
|
Flange
|
|
CIMR-AU2A0069UAA
|
69
|
25
|
60
|
20
|
|
|
CIMR-AU2A0081UAA
|
81
|
30
|
75
|
25
|
|
|
CIMR-AU2A0110UAA
|
110
|
40
|
85
|
30
|
Flange
|
|
CIMR-AU2A0138UAA
|
138
|
50
|
115
|
40
|
|
|
CIMR-AU2A0169UAA
|
169
|
60
|
145
|
50
|
|
|
CIMR-AU2A0211UAA
|
211
|
75
|
180
|
60
|
Flange
|
|
CIMR-AU2A0250UAA
|
250
|
100
|
215
|
75
|
|
|
CIMR-AU2A0312UAA
|
312
|
125
|
283
|
100
|
|
|
CIMR-AU2A0360UAA
|
360
|
150
|
346
|
125
|
Flange
|
|
CIMR-AU2A0415UAA
|
415
|
175
|
415
|
150
|
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430. 150 Full-Load Current, Three-Phase Alternating Current Motors
A1000 Drive 240V, Single-Phase Input, (208-230V Three-Phase Output)
|
DRIVE MODEL
|
SINGLE PHASE INPUT – SIZING METHOD A |
SINGLE PHASE INPUT – SIZING METHOD B
(86% MAX POWER OF CONNECTED MOTOR SIZE) |
||||
|---|---|---|---|---|---|---|
|
WITHOUT ADDITIONAL REACTOR
|
WITH ADDITIONAL REACTOR
|
|||||
| MOTOR AMPS | MOTOR SIZE (HP) | MOTOR AMPS | MOTOR SIZE (HP) |
MOTOR AMPS
|
MOTOR SIZE (HP)
|
|
|
CIMR-AU2A0004FAA
|
1.7
|
1/3
|
2.4
|
1/2
|
2.4
|
1/2
|
|
CIMR-AU2A0006FAA
|
3.5
|
3/4
|
3.5
|
3/4
|
4.6
|
1
|
|
CIMR-AU2A0008FAA
|
4.6
|
1
|
4.6
|
1
|
4.6
|
1
|
|
CIMR-AU2A0010FAA
|
4.6
|
1
|
4.6
|
1
|
6.6
|
1.5
|
|
CIMR-AU2A0012FAA
|
6.6
|
1.5
|
7.5
|
2
|
7.5
|
2
|
|
CIMR-AU2A0018FAA
|
7.5
|
2
|
10.6
|
3
|
10.6
|
3
|
|
CIMR-AU2A0021FAA
|
7.5
|
2
|
10.6
|
3
|
10.6
|
3
|
|
CIMR-AU2A0030FAA
|
10.6
|
3
|
10.6
|
3
|
17.0
|
5
|
|
CIMR-AU2A0040FAA
|
10.6
|
3
|
17
|
5
|
17.0
|
5
|
|
CIMR-AU2A0056FAA
|
17
|
5
|
24
|
7.5
|
24.0
|
7.5
|
|
CIMR-AU2A0069FAA
|
24
|
7.5
|
31
|
10
|
31.0
|
10
|
|
CIMR-AU2A0081FAA
|
31
|
10
|
46
|
15 |
46
|
15
|
|
CIMR-AU2A0110FAA
|
31
|
10
|
31
|
10 |
46
|
15
|
|
CIMR-AU2A0138FAA
|
46
|
15
|
46
|
15
|
59
|
20
|
|
CIMR-AU2A0169FAA
|
59
|
20
|
59
|
20
|
75
|
25
|
|
CIMR-AU2A0211FAA
|
75
|
25
|
75
|
25
|
88
|
30
|
|
CIMR-AU2A0250AAA
|
88
|
30
|
88
|
30
|
114
|
40
|
|
CIMR-AU2A0312AAA
|
114
|
40
|
114
|
40
|
143
|
50
|
|
CIMR-AU2A0360AAA
|
143
|
50
|
143
|
50
|
169
|
60
|
| CIMR-AU2A0415AAA |
169
|
60
|
169
|
60
|
211
|
75
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A0081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Only models ending in FAA (CIMR-AU2A0211FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- For Flange Drives, use the sizing method above to determine proper drive size. Use selected model numbers with “UAA” suffix instead of “FAA” or “AAA” suffix.
- Use single phase input sizing method A for applications requiring more than 86% motor power. When sizing with additional reactor, consult factory. Caution: Adding more impedance than specified will degrade performance.
- Use single phase input sizing method B for applications requiring a maximum of 86% motor power.
A1000 Drive 380-480V, 3-Phase, Protected Chassis/NEMA 1
|
DRIVE MODEL
|
NORMAL DUTY (ND)
|
HEAVY DUTY (HD)
|
ENCLOSURE
|
||
|---|---|---|---|---|---|
|
CURRENT
|
NOMINAL HP
|
CURRENT
|
NOMINAL HP
|
||
|
CIMR-AU4A0002FAA
|
2.1
|
3/4 & 1
|
1.8
|
3/4
|
NEMA 1
|
|
CIMR-AU4A0004FAA
|
4.1
|
2
|
3.4
|
1 & 2
|
|
|
CIMR-AU4A0005FAA
|
5.4
|
3
|
4.8
|
3
|
|
|
CIMR-AU4A0007FAA
|
6.9
|
4
|
5.5
|
3
|
NEMA 1
|
|
CIMR-AU4A0009FAA
|
8.8
|
5
|
7.2
|
4
|
|
|
CIMR-AU4A0011FAA
|
11.1
|
7.5
|
9.2
|
5
|
|
|
CIMR-AU4A0018FAA
|
17.5
|
10
|
14.8
|
7.5 & 10
|
NEMA 1
|
|
CIMR-AU4A0023FAA
|
23
|
15
|
18
|
10
|
|
|
CIMR-AU4A0031FAA
|
31
|
20
|
24
|
15
|
|
|
CIMR-AU4A0038FAA
|
38
|
25
|
31
|
20
|
NEMA 1
|
|
CIMR-AU4A0044FAA
|
44
|
30
|
39
|
25 & 30
|
|
|
CIMR-AU4A0058FAA
|
58
|
40
|
45
|
30
|
|
|
CIMR-AU4A0072FAA
|
72
|
50
|
60
|
40
|
NEMA 1
|
|
CIMR-AU4A0088FAA
|
88
|
60
|
75
|
50 & 60
|
|
|
CIMR-AU4A0103FAA
|
103
|
75
|
91
|
60
|
|
|
CIMR-AU4A0139FAA
|
139
|
100
|
112
|
75
|
NEMA 1
|
|
CIMR-AU4A0165FAA
|
165
|
125
|
150
|
100
|
|
|
CIMR-AU4A0208AAA
|
208
|
150
|
180
|
125 & 150
|
Protected Chassis
|
|
CIMR-AU4A0250AAA
|
250
|
200
|
216
|
150
|
|
|
CIMR-AU4A0296AAA
|
296
|
250
|
260
|
200
|
|
|
CIMR-AU4A0362AAA
|
362
|
300
|
304
|
250
|
Protected Chassis
|
|
CIMR-AU4A0414AAA
|
414
|
350
|
370
|
300
|
|
|
CIMR-AU4A0515AAA
|
515
|
400
|
450
|
350
|
Protected Chassis
|
|
CIMR-AU4A0675AAA
|
675
|
500
|
605
|
400-500
|
|
|
CIMR-AU4A0930AAA
|
930
|
700-800
|
810
|
600-700
|
Protected Chassis
|
|
CIMR-AU4A1200AAA
|
1200
|
900-1000
|
1090
|
800-900
|
|
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03 for proper sizing.
A1000 Drive 380-480V, 3-Phase, Flange
|
DRIVE MODEL
|
NORMAL DUTY (ND)
|
HEAVY DUTY (HD)
|
ENCLOSURE
|
||
|---|---|---|---|---|---|
|
CURRENT
|
NOMINAL HP
|
CURRENT
|
NOMINAL HP
|
||
|
CIMR-AU4A0002UAA
|
2.1
|
1
|
1.8
|
3/4
|
Flange
|
|
CIMR-AU4A0004UAA
|
4.1
|
2
|
3.4
|
1 & 2
|
|
|
CIMR-AU4A0005UAA
|
5.4
|
3
|
4.8
|
3
|
|
|
CIMR-AU4A0007UAA
|
6.9
|
4
|
5.5
|
3
|
Flange
|
|
CIMR-AU4A0009UAA
|
8.8
|
5
|
7.2
|
5
|
|
|
CIMR-AU4A0011UAA
|
11.1
|
7.5
|
9.2
|
5
|
|
|
CIMR-AU4A0018UAA
|
17.5
|
10
|
14.8
|
7.5 & 10
|
Flange
|
|
CIMR-AU4A0023UAA
|
23
|
15
|
18
|
10
|
|
|
CIMR-AU4A0031UAA
|
31
|
20
|
24
|
15
|
|
|
CIMR-AU4A0038UAA
|
38
|
25
|
31
|
20
|
Flange
|
|
CIMR-AU4A0044UAA
|
44
|
30
|
39
|
25 & 30
|
|
|
CIMR-AU4A0058UAA
|
58
|
40
|
45
|
30
|
|
|
CIMR-AU4A0072UAA
|
72
|
50
|
60
|
40
|
Flange
|
|
CIMR-AU4A0088UAA
|
88
|
60
|
75
|
50 & 60
|
|
|
CIMR-AU4A0103UAA
|
103
|
75
|
91
|
60
|
|
|
CIMR-AU4A0139UAA
|
139
|
100
|
112
|
75
|
Flange
|
|
CIMR-AU4A0165UAA
|
165
|
125
|
150
|
100
|
|
|
CIMR-AU4A0208UAA
|
208
|
150
|
180
|
125 & 150
|
Flange
|
|
CIMR-AU4A0250UAA
|
250
|
200
|
216
|
150
|
|
|
CIMR-AU4A0296UAA
|
296
|
250
|
260
|
200
|
|
|
CIMR-AU4A0362UAA
|
362
|
300
|
304
|
250
|
Flange
|
|
CIMR-AU4A0414UAA
|
414
|
350
|
370
|
300
|
|
|
CIMR-AU4A0515UAA
|
515
|
400
|
450
|
350
|
Flange
|
|
CIMR-AU4A0675UAA
|
675
|
500
|
605
|
400-500
|
|
|
CIMR-AU4A0930UAA4
|
930
|
700-800
|
810
|
600-700
|
Flange
|
|
CIMR-AU4A1200UAA4
|
1200
|
900-1000
|
1090
|
800-900
|
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430. 150 Full-Load Current, Three-Phase Alternating Current Motors
- Models CIMR-AU4A0930UAA and CIMR-AU4A1200UAA must be used with semiconductor input fuses and must be fed by a power source that has ground fault protection. A supplementary ground fault protection device can be added between the drive and the power source to address this requirement.
A1000 Drive 380-480V, 3-Phase,12-Pulse
|
DRIVE MODEL
|
NORMAL DUTY (ND)
|
HEAVY DUTY (HD)
|
ENCLOSURE
|
||
|---|---|---|---|---|---|
|
Current
|
Nominal HP
|
Current
|
Nominal HP
|
||
|
CIMR-AU4T0058UAA
|
58
|
40
|
45
|
30
|
Flange
|
|
CIMR-AU4T0072UAA
|
72
|
50
|
60
|
40
|
|
|
CIMR-AU4T0088UAA
|
88
|
60
|
75
|
50 & 60
|
Flange
|
|
CIMR-AU4T0103UAA
|
103
|
75
|
91
|
60
|
|
|
CIMR-AU4T0139UAA
|
139
|
100
|
112
|
75
|
Flange
|
|
CIMR-AU4T0165UAA
|
165
|
125
|
150
|
100
|
|
|
CIMR-AU4T0208UAA
|
208
|
150
|
180
|
125 & 150
|
Flange
|
|
CIMR-AU4T0250UAA
|
250
|
200
|
216
|
150
|
|
|
CIMR-AU4T0296UAA
|
296
|
250
|
260
|
200
|
|
|
CIMR-AU4T0362UAA
|
362
|
300
|
304
|
250
|
Flange
|
|
CIMR-AU4T0414UAA
|
414
|
350
|
370
|
300
|
|
|
CIMR-AU4T0515UAA
|
515
|
400
|
450
|
350
|
Flange
|
|
CIMR-AU4T0675UAA
|
675
|
500-600
|
605
|
400-500
|
|
|
See note 4
|
930
|
700-800
|
810
|
600-700
|
Fnlage
|
|
See note 4
|
1200
|
900-1000
|
1090
|
800-900
|
|
- Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external. Flange parts can be removed if conventional mounting is desired.
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds.
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors.
- Models CIMR-AU4A0930xxx and CIMR-AU4A1200xxx are user configurable for either 6-Pulse (3-Phase) or 12-Pulse (6-Phase) input. See Standard 480V for model numbers.>
A1000 Drive 480V, Single-Phase Input, (460V Three-Phase Output)
|
DRIVE MODEL
|
SINGLE PHASE INPUT – SIZING METHOD A | SINGLE PHASE INPUT – SIZING METHOD B |
|||||
|---|---|---|---|---|---|---|---|
|
WITHOUT ADDITIONAL REACTOR
|
WITH ADDITIONAL REACTOR
|
||||||
| MOTOR AMPS | MOTOR SIZE (HP) | MOTOR AMPS | MOTOR SIZE (HP) |
MOTOR AMPS
|
MOTOR SIZE (HP)
|
||
|
CIMR-AU4A0002FAA
|
0.8
|
1/3
|
1.1
|
1/2
|
0.8
|
1/3
|
|
|
CIMR-AU4A0004FAA
|
1.6
|
3/4
|
2.1
|
1
|
2.1
|
1
|
|
|
CIMR-AU4A0005FAA
|
2.1
|
1
|
3.0
|
1.5
|
3.0
|
1.5
|
|
|
CIMR-AU4A0007FAA
|
3.0
|
1.5
|
3.4
|
2
|
3.4
|
2
|
|
|
CIMR-AU4A0009FAA
|
3.4
|
2
|
4.8
|
3
|
4.8
|
3
|
|
|
CIMR-AU4A0011FAA
|
3.4
|
2
|
4.8
|
3
|
4.8
|
3
|
|
|
CIMR-AU4A0018FAA
|
4.8
|
3
|
4.8
|
3
|
7.6
|
5
|
|
|
CIMR-AU4A0023FAA
|
4.8
|
3
|
7.6
|
5
|
7.6
|
5
|
|
|
CIMR-AU4A0031FAA
|
11
|
7.5
|
11
|
7.5
|
14.0
|
10
|
|
|
CIMR-AU4A0038FAA
|
11
|
7.5
|
14
|
10
|
14.0
|
10
|
|
|
CIMR-AU4A0044FAA
|
14
|
10
|
14
|
10
|
21.0
|
15
|
|
|
CIMR-AU4A0058FAA
|
21
|
15
|
21
|
15
|
27.0
|
20
|
|
|
CIMR-AU4A0072FAA
|
27
|
20
|
27
|
20
|
34.0
|
25
|
|
|
CIMR-AU4A0088FAA
|
27
|
20
|
27
|
20
|
34.0
|
25
|
|
|
CIMR-AU4A0103FAA
|
27
|
20
|
27
|
20
|
34.0
|
25
|
|
|
CIMR-AU4A0139FAA
|
52
|
40
|
52
|
40
|
65.0
|
50
|
|
|
CIMR-AU4A0165FAA
|
52
|
40
|
52
|
40
|
65.0
|
50
|
|
|
CIMR-AU4A0208AAA
|
65
|
50
|
65
|
50
|
77.0
|
60
|
|
|
CIMR-AU4A0250AAA
|
77
|
60
|
77
|
60
|
96
|
75
|
|
|
CIMR-AU4A0296AAA
|
96
|
75
|
96
|
75
|
124
|
100
|
|
|
CIMR-AU4A0362AAA
|
124
|
100
|
124
|
100
|
156
|
125
|
|
|
CIMR-AU4A0414AAA
|
CIMR-UUX000679
|
156
|
125
|
156
|
125
|
180
|
150
|
|
CIMR-AU4A0515AAA
|
CIMR-UUX000680
|
156
|
125
|
156
|
125
|
180
|
150
|
|
CIMR-AU4A0675AAA
|
CIMR-UUX000681
|
180
|
150
|
180
|
150
|
240
|
200
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A0081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Only models ending in FAA (CIMR-AU2A0211FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- For Flange Drives, use the sizing method above to determine proper drive size. Use selected model numbers with “UAA” suffix instead of “FAA” or “AAA” suffix.
- Use single phase input sizing method A for applications requiring more than 86% motor power. When sizing with additional reactor, consult factory. Caution: Adding more impedance than specified will degrade performance.
- Use single phase input sizing method B for applications requiring a maximum of 86% motor power.
A1000 Drive 500-600V, 3-Phase, Protected Chassis/NEMA 1
|
DRIVE MODEL
|
NORMAL DUTY (ND)
|
HEAVY DUTY (HD)
|
ENCLOSURE
|
||
|---|---|---|---|---|---|
|
CURRENT
|
NOMINAL HP
|
CURRENT
|
NOMINAL HP
|
||
|
CIMR-AU5A0003FAA
|
2.7
|
1 & 2
|
1.7
|
1
|
NEMA 1
|
|
CIMR-AU5A0004FAA
|
3.9
|
3
|
3.5
|
2
|
|
|
CIMR-AU5A0006FAA
|
6.1
|
5
|
4.1
|
3
|
|
|
CIMR-AU5A0009FAA
|
9
|
7.5
|
6.3
|
5
|
NEMA 1
|
|
CIMR-AU5A0011FAA
|
11
|
10
|
9.8
|
7.5
|
|
|
CIMR-AU5A0017FAA
|
17.5
|
15
|
12.5
|
10
|
|
|
CIMR-AU5A0022FAA
|
22
|
20
|
17
|
15
|
NEMA 1
|
|
CIMR-AU5A0027FAA
|
27
|
25
|
22
|
20
|
|
|
CIMR-AU5A0032FAA
|
32
|
30
|
27
|
25
|
|
|
CIMR-AU5A0041FAA
|
41
|
40
|
32
|
30
|
NEMA 1
|
|
CIMR-AU5A0052FAA
|
52
|
50
|
41
|
40
|
|
|
CIMR-AU5A0062FAA
|
62
|
60
|
52
|
50
|
|
|
CIMR-AU5A0077FAA
|
77
|
75
|
62
|
60
|
NEMA 1
|
|
CIMR-AU5A0099FAA
|
99
|
100
|
77
|
75
|
|
|
CIMR-AU5A0125AAA
|
125
|
125
|
99
|
100
|
Protected Chassis
|
|
CIMR-AU5A0145AAA
|
145
|
150
|
130
|
125
|
|
|
CIMR-AU5A0192AAA
|
192
|
200
|
172
|
150
|
Protected Chassis
|
|
CIMR-AU5A0242AAA
|
242
|
250
|
200
|
200
|
|
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03 for proper sizing.
A1000 Drive 500-600V, 3-Phase, Flange
|
DRIVE MODEL
|
NORMAL DUTY (ND)
|
HEAVY DUTY (HD)
|
ENCLOSURE
|
||
|---|---|---|---|---|---|
|
CURRENT
|
NOMINAL HP
|
CURRENT
|
NOMINAL HP
|
||
|
CIMR-AU5A0003UAA
|
2.7
|
1 & 2
|
1.7
|
1
|
Flange
|
|
CIMR-AU5A0004UAA
|
3.9
|
3
|
3.5
|
2
|
|
|
CIMR-AU5A0006UAA
|
6.1
|
5
|
4.1
|
3
|
|
|
CIMR-AU5A0009UAA
|
9
|
7.5
|
6.3
|
5
|
Flange
|
|
CIMR-AU5A0011UAA
|
11
|
10
|
9.8
|
7.5
|
|
|
CIMR-AU5A0017UAA
|
17.5
|
15
|
12.5
|
10
|
|
|
CIMR-AU5A0022UAA
|
22
|
20
|
17
|
15
|
Flange
|
|
CIMR-AU5A0027UAA
|
27
|
25
|
22
|
20
|
|
|
CIMR-AU5A0032UAA
|
32
|
30
|
27
|
25
|
|
|
CIMR-AU5A0041UAA
|
41
|
40
|
32
|
30
|
Flange
|
|
CIMR-AU5A0052UAA
|
52
|
50
|
41
|
40
|
|
|
CIMR-AU5A0062UAA
|
62
|
60
|
52
|
50
|
|
|
CIMR-AU5A0077UAA
|
77
|
75
|
62
|
60
|
Flange
|
|
CIMR-AU5A0099UAA
|
99
|
100
|
77
|
75
|
|
|
CIMR-AU5A0125UAA
|
125
|
125
|
99
|
100
|
Flange
|
|
CIMR-AU5A0145UAA
|
145
|
150
|
130
|
125
|
|
|
CIMR-AU5A0192UAA
|
192
|
200
|
172
|
150
|
Flange
|
|
CIMR-AU5A0242UAA
|
242
|
250
|
200
|
200
|
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430. 150 Full-Load Current, Three-Phase Alternating Current Motors
A1000 Drive 600V, Single-Phase Input, (575V Three-Phase Output)
|
DRIVE MODEL
|
SINGLE PHASE INPUT – SIZING METHOD A | SINGLE PHASE INPUT – SIZING METHOD B |
||||
|---|---|---|---|---|---|---|
|
WITHOUT ADDITIONAL REACTOR
|
WITH ADDITIONAL REACTOR
|
|||||
| MOTOR AMPS | MOTOR SIZE (HP) | MOTOR AMPS | MOTOR SIZE (HP) |
MOTOR AMPS
|
MOTOR SIZE (HP)
|
|
|
CIMR-AU5A0003FAA
|
1.7
|
1
|
2.4
|
1.5
|
1.7
|
1
|
|
CIMR-AU5A0004FAA
|
2.4
|
1.5
|
2.7
|
2
|
2.7
|
2
|
|
CIMR-AU5A0006FAA
|
2.7
|
2
|
3.9
|
3
|
3.9
|
3
|
|
CIMR-AU5A0009FAA
|
3.9
|
3
|
6.1
|
5
|
6.1
|
5
|
|
CIMR-AU5A0011FAA
|
2.7
|
2
|
3.9
|
3
|
3.9
|
3
|
|
CIMR-AU5A0017FAA
|
6.1
|
5
|
6.1
|
5
|
9.0
|
7.5
|
|
CIMR-AU5A0022FAA
|
6.1
|
5
|
7.5
|
9.0
|
9.0
|
7.5
|
|
CIMR-AU5A0027FAA
|
9.0
|
7.5
|
11
|
10
|
11.0
|
10
|
|
CIMR-AU5A0032FAA
|
9.0
|
7.5
|
11
|
10
|
11.0
|
10
|
|
CIMR-AU5A0041FAA
|
17
|
15
|
17
|
15
|
22.0
|
20
|
|
CIMR-AU5A0052FAA
|
17
|
15
|
17
|
15
|
22.0
|
20
|
|
CIMR-AU5A0062FAA
|
27
|
25
|
27
|
25
|
32.0
|
30
|
|
CIMR-AU5A0077FAA
|
32
|
30
|
32
|
30
|
41
|
40
|
|
CIMR-AU5A0099FAA
|
32
|
30
|
32
|
30
|
41
|
40
|
|
CIMR-AU5A0125AAA
|
52
|
50
|
52
|
50
|
62
|
60
|
|
CIMR-AU5A0145AAA
|
52
|
50
|
52
|
50
|
62
|
60
|
|
CIMR-AU5A0192AAA
|
77
|
75
|
77
|
75
|
99
|
100
|
|
CIMR-AU5A0242AAA
|
77
|
75
|
77
|
75
|
99
|
100
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A0081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Only models ending in FAA (CIMR-AU2A0211FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- For Flange Drives, use the sizing method above to determine proper drive size. Use selected model numbers with “UAA” suffix instead of “FAA” or “AAA” suffix.
- Use single phase input sizing method A for applications requiring more than 86% motor power. When sizing with additional reactor, refer to “Reactors for Single Phase Input” section of this price book. Caution: Adding more impedance than specified will degrade performance.
- Use single phase input sizing method B for applications requiring a maximum of 86% motor power.
Biến tần cho cẩu trục, biến tần cho bơm, biến tần cho quạt, biến tần cho băng tải, biến tần cho máy nén khí, biến tần cho HVAC, biến tần 1 pha ra 3 pha
| Model sản phẩm | Tải thường | Tải nặng | ||
| Dòng đầu ra | Công suất | Dòng đầu ra | Công suất (Kw) | |
| CIMR-AT4A0002 | 2.1 | 0.75 | 1.8 | Biến tần Yaskawa A1000 0.4/0,75 kw |
| CIMR-AT4A0004 | 4.1 | 1.5 | 3.4 | Biến tần Yaskawa A1000 0.75/1,5 kw |
| CIMR-AT4A0005 | 5.4 | 2.2 | 4.8 | Biến tần Yaskawa A1000 1.5/2,2 kw |
| CIMR-AT4A0007 | 6.9 | 3.0 | 5.5 | Biến tần Yaskawa A1000 2.2/3,0 kw |
| CIMR-AT4A0009 | 8.8 | 3.7 | 7.2 | Biến tần Yaskawa A1000 3.0/3,7 kw |
| CIMR-AT4A0011 | 11.1 | 5.5 | 9.2 | Biến tần Yaskawa A1000 3.7/5.5 kw |
| CIMR-AT4A0018 | 17.5 | 7.5 | 14.8 | Biến tần Yaskawa A1000 5.5/7,5 kw |
| CIMR-AT4A0023 | 23 | 11 | 18 | Biến tần Yaskawa A1000 7.5/11 kw |
| CIMR-AT4A0031 | 31 | 15 | 24 | Biến tần Yaskawa A1000 11/15 kw |
| CIMR-AT4A0038 | 38 | 18.5 | 31 | Biến tần Yaskawa A1000 15/18,5 kw |
| CIMR-AT4A0044 | 44 | 22 | 39 | Biến tần Yaskawa A1000 18.5/22 kw |
| CIMR-AT4A0058 | 58 | 30 | 45 | Biến tần Yaskawa A1000 22/30 kw |
| CIMR-AT4A0072 | 72 | 37 | 60 | Biến tần Yaskawa A1000 30/37 kw |
| CIMR-AT4A0088 | 88 | 45 | 75 | Biến tần Yaskawa A1000 37/45 kw |
| CIMR-AT4A0103 | 103 | 55 | 91 | Biến tần Yaskawa A1000 45/55 kw |
| CIMR-AT4A0139 | 139 | 75 | 112 | Biến tần Yaskawa A1000 55/75 kw |
| CIMR-AT4A0165 | 165 | 90 | 150 | Biến tần Yaskawa A1000 75/90 kw |
| CIMR-AT4A0208 | 208 | 110 | 180 | Biến tần Yaskawa A1000 90/110 kw |
| CIMR-AT4A0250 | 250 | 132 | 216 | Biến tần Yaskawa A1000 110/132 kw |
| CIMR-AT4A0296 | 296 | 160 | 260 | Biến tần Yaskawa A1000 132/160 kw |
| CIMR-AT4A0362 | 362 | 185 | 304 | Biến tần Yaskawa A1000 160/185 kw |
| CIMR-AT4A0414 | 414 | 220 | 370 | Biến tần Yaskawa A1000 185/220 kw |
| CIMR-AT4A0515 | 515 | 250 | 450 | Biến tần Yaskawa A1000 220/250 kw |
| CIMR-AT4A0675 | 675 | 355 | 605 | Biến tần Yaskawa A1000 315/450 kw |
| CIMR-AT4A0930 | 930 | 500 | 810 | Biến tần Yaskawa A1000 450/560 kw |
| CIMR-AT4A1200 | 1200 | 630 | 1090 | Biến tần Yaskawa A1000 560 kw |
The Yaskawa A1000 is a full featured drive, providing outstanding quality, performance, flexibility, and environmental friendliness through 1000HP. Enjoy network communications, feedback, and expandable I/O to control anything from simple fans and pumps to complex machines. For new installations or retrofits, the A1000 provides a single robust solution, regardless of your application
Yaskawa A1000 200-240V, 3-Phase, Protected Chassis/NEMA 1
| Drive Model | Normal Duty (ND) | Heavy Duty (HD) | Enclosure | ||
| Current | Nominal HP | Current | Nominal HP | ||
| CIMR-AU2A0004FAA | 3.5 | 3/4 | 3.2 | 3/4 | NEMA 1 |
| CIMR-AU2A0006FAA | 6 | 1 | 5 | 1 | |
| CIMR-AU2A0008FAA | 8 | 2 | 6.9 | 2 | |
| CIMR-AU2A0010FAA | 9.6 | 2 | 8 | 2 | NEMA 1 |
| CIMR-AU2A0012FAA | 12 | 3 | 11 | 3 | |
| CIMR-AU2A0018FAA | 17.5 | 5 | 14 | 3 | |
| CIMR-AU2A0021FAA | 21 | 7.5 | 17.5 | 5 | NEMA 1 |
| CIMR-AU2A0030FAA | 30 | 10 | 25 | 7.5 | |
| CIMR-AU2A0040FAA | 40 | 15 | 33 | 10 | |
| CIMR-AU2A0056FAA | 56 | 20 | 47 | 15 | NEMA 1 |
| CIMR-AU2A0069FAA | 69 | 25 | 60 | 20 | |
| CIMR-AU2A0081FAA | 81 | 30 | 75 | 25 | |
| CIMR-AU2A0110FAA | 110 | 40 | 85 | 30 | NEMA 1 |
| CIMR-AU2A0138FAA | 138 | 50 | 115 | 40 | |
| CIMR-AU2A0169FAA | 169 | 60 | 145 | 50 | NEMA 1 |
| CIMR-AU2A0211FAA | 211 | 75 | 180 | 60 | |
| CIMR-AU2A0250AAA | 250 | 100 | 215 | 75 | Protected Chassis |
| CIMR-AU2A0312AAA | 312 | 125 | 283 | 100 | |
| CIMR-AU2A0360AAA | 360 | 150 | 346 | 125 | Protected Chassis |
| CIMR-AU2A0415AAA | 415 | 175 | 415 | 150 | |
Yaskawa A1000 asia model 200-240V, 3-Phase
| Drive Model | Normal Duty (ND) | Heavy Duty (HD) | Enclosure | ||
| Current | Nominal HP | Current | Nominal HP | ||
| CIMR-AT2A0004FAA | 3.5 | 3/4 | 3.2 | 3/4 | NEMA 1 |
| CIMR-AT2A0006FAA | 6 | 1 | 5 | 1 | |
| CIMR-AT2A0008FAA | 8 | 2 | 6.9 | 2 | |
| CIMR-AT2A0010FAA | 9.6 | 2 | 8 | 2 | NEMA 1 |
| CIMR-AT2A0012FAA | 12 | 3 | 11 | 3 | |
| CIMR-AT2A0018FAA | 17.5 | 5 | 14 | 3 | |
| CIMR-AT2A0021FAA | 21 | 7.5 | 17.5 | 5 | NEMA 1 |
| CIMR-AT2A0030FAA | 30 | 10 | 25 | 7.5 | |
| CIMR-AT2A0040FAA | 40 | 15 | 33 | 10 | |
| CIMR-AT2A0056FAA | 56 | 20 | 47 | 15 | NEMA 1 |
| CIMR-AT2A0069FAA | 69 | 25 | 60 | 20 | |
| CIMR-AT2A0081FAA | 81 | 30 | 75 | 25 | |
| CIMR-AT2A0110FAA | 110 | 40 | 85 | 30 | NEMA 1 |
| CIMR-AT2A0138FAA | 138 | 50 | 115 | 40 | |
| CIMR-AT2A0169FAA | 169 | 60 | 145 | 50 | NEMA 1 |
| CIMR-AT2A0211FAA | 211 | 75 | 180 | 60 | |
| CIMR-AT2A0250AAA | 250 | 100 | 215 | 75 | Protected Chassis |
| CIMR-AT2A0312AAA | 312 | 125 | 283 | 100 | |
| CIMR-AT2A0360AAA | 360 | 150 | 346 | 125 | Protected Chassis |
| CIMR-AU2A0415AAA | 415 | 175 | 415 | 150 | |
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03for proper sizing.
Yaskawa A1000 200-240V, 3-Phase, Flange
| Drive Model | Normal Duty (ND) | Heavy Duty (HD) | Enclosure | ||
| Current | Nominal HP | Current | Nominal HP | ||
| CIMR-AU2A0004UAA | 3.5 | 3/4 | 3.2 | 3/4 | Flange |
| CIMR-AU2A0006UAA | 6 | 1 | 5 | 1 | |
| CIMR-AU2A0008UAA | 8 | 2 | 6.9 | 2 | |
| CIMR-AU2A0010UAA | 9.6 | 3 | 8 | 2 | Flange |
| CIMR-AU2A0012UAA | 12 | 3 | 11 | 3 | |
| CIMR-AU2A0018UAA | 17.5 | 5 | 14 | 3 | |
| CIMR-AU2A0021UAA | 21 | 7.5 | 17.5 | 5 | Flange |
| CIMR-AU2A0030UAA | 30 | 10 | 25 | 7.5 | |
| CIMR-AU2A0040UAA | 40 | 15 | 33 | 10 | |
| CIMR-AU2A0056UAA | 56 | 20 | 47 | 15 | Flange |
| CIMR-AU2A0069UAA | 69 | 25 | 60 | 20 | |
| CIMR-AU2A0081UAA | 81 | 30 | 75 | 25 | |
| CIMR-AU2A0110UAA | 110 | 40 | 85 | 30 | Flange |
| CIMR-AU2A0138UAA | 138 | 50 | 115 | 40 | |
| CIMR-AU2A0169UAA | 169 | 60 | 145 | 50 | |
| CIMR-AU2A0211UAA | 211 | 75 | 180 | 60 | Flange |
| CIMR-AU2A0250UAA | 250 | 100 | 215 | 75 | |
| CIMR-AU2A0312UAA | 312 | 125 | 283 | 100 | |
| CIMR-AU2A0360UAA | 360 | 150 | 346 | 125 | Flange |
| CIMR-AU2A0415UAA | 415 | 175 | 415 | 150 | |
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430. 150 Full-Load Current, Three-Phase Alternating Current Motors
Yaskawa A1000 240V, Single-Phase Input, (208-230V Three-Phase Output)
| Drive Model | Single Phase Input – Sizing Method A |
Single Phase Input – Sizing Method B |
||||
| Without Additional Reactor | With Additional Reactor | |||||
| Motor Amps | Motor Size (HP) | Motor Amps | Motor Size (HP) | Motor Amps | Motor Size (HP) | |
| CIMR-AU2A0004FAA | 1.7 | 1/3 | 2.4 | 1/2 | 2.4 | 1/2 |
| CIMR-AU2A0006FAA | 3.5 | 3/4 | 3.5 | 3/4 | 4.6 | 1 |
| CIMR-AU2A0008FAA | 4.6 | 1 | 4.6 | 1 | 4.6 | 1 |
| CIMR-AU2A0010FAA | 4.6 | 1 | 4.6 | 1 | 6.6 | 1.5 |
| CIMR-AU2A0012FAA | 6.6 | 1.5 | 7.5 | 2 | 7.5 | 2 |
| CIMR-AU2A0018FAA | 7.5 | 2 | 10.6 | 3 | 10.6 | 3 |
| CIMR-AU2A0021FAA | 7.5 | 2 | 10.6 | 3 | 10.6 | 3 |
| CIMR-AU2A0030FAA | 10.6 | 3 | 10.6 | 3 | 17.0 | 5 |
| CIMR-AU2A0040FAA | 10.6 | 3 | 17 | 5 | 17.0 | 5 |
| CIMR-AU2A0056FAA | 17 | 5 | 24 | 7.5 | 24.0 | 7.5 |
| CIMR-AU2A0069FAA | 24 | 7.5 | 31 | 10 | 31.0 | 10 |
| CIMR-AU2A0081FAA | 31 | 10 | 46 | 15 | 46 | 15 |
| CIMR-AU2A0110FAA | 31 | 10 | 31 | 10 | 46 | 15 |
| CIMR-AU2A0138FAA | 46 | 15 | 46 | 15 | 59 | 20 |
| CIMR-AU2A0169FAA | 59 | 20 | 59 | 20 | 75 | 25 |
| CIMR-AU2A0211FAA | 75 | 25 | 75 | 25 | 88 | 30 |
| CIMR-AU2A0250AAA | 88 | 30 | 88 | 30 | 114 | 40 |
| CIMR-AU2A0312AAA | 114 | 40 | 114 | 40 | 143 | 50 |
| CIMR-AU2A0360AAA | 143 | 50 | 143 | 50 | 169 | 60 |
| CIMR-AU2A0415AAA | 169 | 60 | 169 | 60 | 211 | 75 |
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A0081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Only models ending in FAA (CIMR-AU2A0211FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- For Flange Drives, use the sizing method above to determine proper drive size. Use selected model numbers with “UAA” suffix instead of “FAA” or “AAA” suffix.
- Use single phase input sizing method A for applications requiring more than 86% motor power. When sizing with additional reactor, consult factory. Caution: Adding more impedance than specified will degrade performance.
- Use single phase input sizing method B for applications requiring a maximum of 86% motor power.
Yaskawa A1000 380-480V, 3-Phase, Protected Chassis/NEMA 1
| Drive Model | Normal Duty (ND) | Heavy Duty (HD) | Enclosure | ||
| Current | Nominal HP2 | Current | Nominal HP | ||
| CIMR-AU4A0002FAA | 2.1 | 3/4 & 1 | 1.8 | 3/4 | NEMA 1 |
| CIMR-AU4A0004FAA | 4.1 | 2 | 3.4 | 1 & 2 | |
| CIMR-AU4A0005FAA | 5.4 | 3 | 4.8 | 3 | |
| CIMR-AU4A0007FAA | 6.9 | 4 | 5.5 | 3 | NEMA 1 |
| CIMR-AU4A0009FAA | 8.8 | 5 | 7.2 | 4 | |
| CIMR-AU4A0011FAA | 11.1 | 7.5 | 9.2 | 5 | |
| CIMR-AU4A0018FAA | 17.5 | 10 | 14.8 | 7.5 & 10 | NEMA 1 |
| CIMR-AU4A0023FAA | 23 | 15 | 18 | 10 | |
| CIMR-AU4A0031FAA | 31 | 20 | 24 | 15 | |
| CIMR-AU4A0038FAA | 38 | 25 | 31 | 20 | NEMA 1 |
| CIMR-AU4A0044FAA | 44 | 30 | 39 | 25 & 30 | |
| CIMR-AU4A0058FAA | 58 | 40 | 45 | 30 | |
| CIMR-AU4A0072FAA | 72 | 50 | 60 | 40 | NEMA 1 |
| CIMR-AU4A0088FAA | 88 | 60 | 75 | 50 & 60 | |
| CIMR-AU4A0103FAA | 103 | 75 | 91 | 60 | |
| CIMR-AU4A0139FAA | 139 | 100 | 112 | 75 | NEMA 1 |
| CIMR-AU4A0165FAA | 165 | 125 | 150 | 100 | |
| CIMR-AU4A0208AAA | 208 | 150 | 180 | 125 & 150 | Protected Chassis |
| CIMR-AU4A0250AAA | 250 | 200 | 216 | 150 | |
| CIMR-AU4A0296AAA | 296 | 250 | 260 | 200 | |
| CIMR-AU4A0362AAA | 362 | 300 | 304 | 250 | Protected Chassis |
| CIMR-AU4A0414AAA | 414 | 350 | 370 | 300 | |
| CIMR-AU4A0515AAA | 515 | 400 | 450 | 350 | Protected Chassis |
| CIMR-AU4A0675AAA | 675 | 500 | 605 | 400-500 | |
| CIMR-AU4A0930AAA | 930 | 700-800 | 810 | 600-700 | Protected Chassis |
| CIMR-AU4A1200AAA | 1200 | 900-1000 | 1090 | 800-900 | |
Yaskawa A1000 ASIA Model 380-480V, 3-Phase, Protected Chassis/NEMA 1
| Drive Model | Normal Duty (ND) | Heavy Duty (HD) | Enclosure | ||
| Current | Nominal HP | Current | Nominal HP | ||
| CIMR-AT4A0002FAA | 2.1 | 3/4 & 1 | 1.8 | 3/4 | NEMA 1 |
| CIMR-AT4A0004FAA | 4.1 | 2 | 3.4 | 1 & 2 | |
| CIMR-AT4A0005FAA | 5.4 | 3 | 4.8 | 3 | |
| CIMR-AT4A0007FAA | 6.9 | 4 | 5.5 | 3 | NEMA 1 |
| CIMR-AT4A0009FAA | 8.8 | 5 | 7.2 | 4 | |
| CIMR-AT4A0011FAA | 11.1 | 7.5 | 9.2 | 5 | |
| CIMR-AT4A0018FAA | 17.5 | 10 | 14.8 | 7.5 & 10 | NEMA 1 |
| CIMR-AT4A0023FAA | 23 | 15 | 18 | 10 | |
| CIMR-AT4A0031FAA | 31 | 20 | 24 | 15 | |
| CIMR-AT4A0038FAA | 38 | 25 | 31 | 20 | NEMA 1 |
| CIMR-AT4A0044FAA | 44 | 30 | 39 | 25 & 30 | |
| CIMR-AT4A0058FAA | 58 | 40 | 45 | 30 | |
| CIMR-AT4A0072FAA | 72 | 50 | 60 | 40 | NEMA 1 |
| CIMR-AT4A0088FAA | 88 | 60 | 75 | 50 & 60 | |
| CIMR-AT4A0103FAA | 103 | 75 | 91 | 60 | |
| CIMR-AT4A0139FAA | 139 | 100 | 112 | 75 | NEMA 1 |
| CIMR-AT4A0165FAA | 165 | 125 | 150 | 100 | |
| CIMR-AT4A0208AAA | 208 | 150 | 180 | 125 & 150 | Protected Chassis |
| CIMR-AT4A0250AAA | 250 | 200 | 216 | 150 | |
| CIMR-AT4A0296AAA | 296 | 250 | 260 | 200 | |
| CIMR-AT4A0362AAA | 362 | 300 | 304 | 250 | Protected Chassis |
| CIMR-AT4A0414AAA | 414 | 350 | 370 | 300 | |
| CIMR-AT4A0515AAA | 515 | 400 | 450 | 350 | Protected Chassis |
| CIMR-AT4A0675AAA | 675 | 500 | 605 | 400-500 | |
| CIMR-AT4A0930AAA | 930 | 700-800 | 810 | 600-700 | Protected Chassis |
| CIMR-AT4A1200AAA | 1200 | 900-1000 | 1090 | 800-900 | |
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03for proper sizing.
Yaskawa A1000 380-480V, 3-Phase, Flange
| Drive Model | Normal Duty (ND) | Heavy Duty (HD) | Enclosure | ||
| Current | Nominal HP | Current | Nominal HP | ||
| CIMR-AU4A0002UAA | 2.1 | 1 | 1.8 | 3/4 | Flange |
| CIMR-AU4A0004UAA | 4.1 | 2 | 3.4 | 1 & 2 | |
| CIMR-AU4A0005UAA | 5.4 | 3 | 4.8 | 3 | |
| CIMR-AU4A0007UAA | 6.9 | 4 | 5.5 | 3 | Flange |
| CIMR-AU4A0009UAA | 8.8 | 5 | 7.2 | 5 | |
| CIMR-AU4A0011UAA | 11.1 | 7.5 | 9.2 | 5 | |
| CIMR-AU4A0018UAA | 17.5 | 10 | 14.8 | 7.5 & 10 | Flange |
| CIMR-AU4A0023UAA | 23 | 15 | 18 | 10 | |
| CIMR-AU4A0031UAA | 31 | 20 | 24 | 15 | |
| CIMR-AU4A0038UAA | 38 | 25 | 31 | 20 | Flange |
| CIMR-AU4A0044UAA | 44 | 30 | 39 | 25 & 30 | |
| CIMR-AU4A0058UAA | 58 | 40 | 45 | 30 | |
| CIMR-AU4A0072UAA | 72 | 50 | 60 | 40 | Flange |
| CIMR-AU4A0088UAA | 88 | 60 | 75 | 50 & 60 | |
| CIMR-AU4A0103UAA | 103 | 75 | 91 | 60 | |
| CIMR-AU4A0139UAA | 139 | 100 | 112 | 75 | Flange |
| CIMR-AU4A0165UAA | 165 | 125 | 150 | 100 | |
| CIMR-AU4A0208UAA | 208 | 150 | 180 | 125 & 150 | Flange |
| CIMR-AU4A0250UAA | 250 | 200 | 216 | 150 | |
| CIMR-AU4A0296UAA | 296 | 250 | 260 | 200 | |
| CIMR-AU4A0362UAA | 362 | 300 | 304 | 250 | Flange |
| CIMR-AU4A0414UAA | 414 | 350 | 370 | 300 | |
| CIMR-AU4A0515UAA | 515 | 400 | 450 | 350 | Flange |
| CIMR-AU4A0675UAA | 675 | 500 | 605 | 400-500 | |
| CIMR-AU4A0930UAA4 | 930 | 700-800 | 810 | 600-700 | Flange |
| CIMR-AU4A1200UAA4 | 1200 | 900-1000 | 1090 | 800-900 | |
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430. 150 Full-Load Current, Three-Phase Alternating Current Motors
- Models CIMR-AU4A0930UAA and CIMR-AU4A1200UAA must be used with semiconductor input fuses and must be fed by a power source that has ground fault protection. A supplementary ground fault protection device can be added between the drive and the power source to address this requirement.
Yaskawa A1000 380-480V, 3-Phase,12-Pulse
| Drive Model | Normal Duty (ND) | Heavy Duty (HD) | Enclosure | ||
| Current | Nominal HP | Current | Nominal HP | ||
| CIMR-AU4T0058UAA | 58 | 40 | 45 | 30 | Flange |
| CIMR-AU4T0072UAA | 72 | 50 | 60 | 40 | |
| CIMR-AU4T0088UAA | 88 | 60 | 75 | 50 & 60 | Flange |
| CIMR-AU4T0103UAA | 103 | 75 | 91 | 60 | |
| CIMR-AU4T0139UAA | 139 | 100 | 112 | 75 | Flange |
| CIMR-AU4T0165UAA | 165 | 125 | 150 | 100 | |
| CIMR-AU4T0208UAA | 208 | 150 | 180 | 125 & 150 | Flange |
| CIMR-AU4T0250UAA | 250 | 200 | 216 | 150 | |
| CIMR-AU4T0296UAA | 296 | 250 | 260 | 200 | |
| CIMR-AU4T0362UAA | 362 | 300 | 304 | 250 | Flange |
| CIMR-AU4T0414UAA | 414 | 350 | 370 | 300 | |
| CIMR-AU4T0515UAA | 515 | 400 | 450 | 350 | Flange |
| CIMR-AU4T0675UAA | 675 | 500-600 | 605 | 400-500 | |
| See note 4 | 930 | 700-800 | 810 | 600-700 | Fnlage |
| See note 4 | 1200 | 900-1000 | 1090 | 800-900 | |
- Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external. Flange parts can be removed if conventional mounting is desired.
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds.
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors.
- Models CIMR-AU4A0930xxx and CIMR-AU4A1200xxx are user configurable for either 6-Pulse (3-Phase) or 12-Pulse (6-Phase) input. See Standard 480V for model numbers.>
Yaskawa A1000 480V, Single-Phase Input, (460V Three-Phase Output)
| Drive Model | Single Phase Input – Sizing Method A |
Single Phase Input – Sizing Method B |
|||||
| Without Additional Reactor | With Additional Reactor | ||||||
| Motor Amps | Motor Size (HP) | Motor Amps | Motor Size (HP) | Motor Amps | Motor Size (HP) | ||
| CIMR-AU4A0002FAA | 0.8 | 1/3 | 1.1 | 1/2 | 0.8 | 1/3 | |
| CIMR-AU4A0004FAA | 1.6 | 3/4 | 2.1 | 1 | 2.1 | 1 | |
| CIMR-AU4A0005FAA | 2.1 | 1 | 3.0 | 1.5 | 3.0 | 1.5 | |
| CIMR-AU4A0007FAA | 3.0 | 1.5 | 3.4 | 2 | 3.4 | 2 | |
| CIMR-AU4A0009FAA | 3.4 | 2 | 4.8 | 3 | 4.8 | 3 | |
| CIMR-AU4A0011FAA | 3.4 | 2 | 4.8 | 3 | 4.8 | 3 | |
| CIMR-AU4A0018FAA | 4.8 | 3 | 4.8 | 3 | 7.6 | 5 | |
| CIMR-AU4A0023FAA | 4.8 | 3 | 7.6 | 5 | 7.6 | 5 | |
| CIMR-AU4A0031FAA | 11 | 7.5 | 11 | 7.5 | 14.0 | 10 | |
| CIMR-AU4A0038FAA | 11 | 7.5 | 14 | 10 | 14.0 | 10 | |
| CIMR-AU4A0044FAA | 14 | 10 | 14 | 10 | 21.0 | 15 | |
| CIMR-AU4A0058FAA | 21 | 15 | 21 | 15 | 27.0 | 20 | |
| CIMR-AU4A0072FAA | 27 | 20 | 27 | 20 | 34.0 | 25 | |
| CIMR-AU4A0088FAA | 27 | 20 | 27 | 20 | 34.0 | 25 | |
| CIMR-AU4A0103FAA | 27 | 20 | 27 | 20 | 34.0 | 25 | |
| CIMR-AU4A0139FAA | 52 | 40 | 52 | 40 | 65.0 | 50 | |
| CIMR-AU4A0165FAA | 52 | 40 | 52 | 40 | 65.0 | 50 | |
| CIMR-AU4A0208AAA | 65 | 50 | 65 | 50 | 77.0 | 60 | |
| CIMR-AU4A0250AAA | 77 | 60 | 77 | 60 | 96 | 75 | |
| CIMR-AU4A0296AAA | 96 | 75 | 96 | 75 | 124 | 100 | |
| CIMR-AU4A0362AAA | 124 | 100 | 124 | 100 | 156 | 125 | |
| CIMR-AU4A0414AAA | CIMR-UUX000679 | 156 | 125 | 156 | 125 | 180 | 150 |
| CIMR-AU4A0515AAA | CIMR-UUX000680 | 156 | 125 | 156 | 125 | 180 | 150 |
| CIMR-AU4A0675AAA | CIMR-UUX000681 | 180 | 150 | 180 | 150 | 240 | 200 |
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A0081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Only models ending in FAA (CIMR-AU2A0211FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- For Flange Drives, use the sizing method above to determine proper drive size. Use selected model numbers with “UAA” suffix instead of “FAA” or “AAA” suffix.
- Use single phase input sizing method A for applications requiring more than 86% motor power. When sizing with additional reactor, consult factory. Caution: Adding more impedance than specified will degrade performance.
- Use single phase input sizing method B for applications requiring a maximum of 86% motor power.
Yaskawa A1000 500-600V, 3-Phase, Protected Chassis/NEMA 1
| Drive Model | Normal Duty (ND)1 | Heavy Duty (HD)1 | Enclosure | ||
| Current | Nominal HP2 | Current | Nominal HP | ||
| CIMR-AU5A0003FAA | 2.7 | 1 & 2 | 1.7 | 1 | NEMA 1 |
| CIMR-AU5A0004FAA | 3.9 | 3 | 3.5 | 2 | |
| CIMR-AU5A0006FAA | 6.1 | 5 | 4.1 | 3 | |
| CIMR-AU5A0009FAA | 9 | 7.5 | 6.3 | 5 | NEMA 1 |
| CIMR-AU5A0011FAA | 11 | 10 | 9.8 | 7.5 | |
| CIMR-AU5A0017FAA | 17.5 | 15 | 12.5 | 10 | |
| CIMR-AU5A0022FAA | 22 | 20 | 17 | 15 | NEMA 1 |
| CIMR-AU5A0027FAA | 27 | 25 | 22 | 20 | |
| CIMR-AU5A0032FAA | 32 | 30 | 27 | 25 | |
| CIMR-AU5A0041FAA | 41 | 40 | 32 | 30 | NEMA 1 |
| CIMR-AU5A0052FAA | 52 | 50 | 41 | 40 | |
| CIMR-AU5A0062FAA | 62 | 60 | 52 | 50 | |
| CIMR-AU5A0077FAA | 77 | 75 | 62 | 60 | NEMA 1 |
| CIMR-AU5A0099FAA | 99 | 100 | 77 | 75 | |
| CIMR-AU5A0125AAA | 125 | 125 | 99 | 100 | Protected Chassis |
| CIMR-AU5A0145AAA | 145 | 150 | 130 | 125 | |
| CIMR-AU5A0192AAA | 192 | 200 | 172 | 150 | Protected Chassis |
| CIMR-AU5A0242AAA | 242 | 250 | 200 | 200 | |
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03for proper sizing.
Yaskawa A1000 500-600V, 3-Phase, Flange
| Drive Model N | Normal Duty (ND) | Heavy Duty (HD) | Enclosure | ||
| Current | Nominal HP | Current | Nominal HP | ||
| CIMR-AU5A0003UAA | 2.7 | 1 & 2 | 1.7 | 1 | Flange |
| CIMR-AU5A0004UAA | 3.9 | 3 | 3.5 | 2 | |
| CIMR-AU5A0006UAA | 6.1 | 5 | 4.1 | 3 | |
| CIMR-AU5A0009UAA | 9 | 7.5 | 6.3 | 5 | Flange |
| CIMR-AU5A0011UAA | 11 | 10 | 9.8 | 7.5 | |
| CIMR-AU5A0017UAA | 17.5 | 15 | 12.5 | 10 | |
| CIMR-AU5A0022UAA | 22 | 20 | 17 | 15 | Flange |
| CIMR-AU5A0027UAA | 27 | 25 | 22 | 20 | |
| CIMR-AU5A0032UAA | 32 | 30 | 27 | 25 | |
| CIMR-AU5A0041UAA | 41 | 40 | 32 | 30 | Flange |
| CIMR-AU5A0052UAA | 52 | 50 | 41 | 40 | |
| CIMR-AU5A0062UAA | 62 | 60 | 52 | 50 | |
| CIMR-AU5A0077UAA | 77 | 75 | 62 | 60 | Flange |
| CIMR-AU5A0099UAA | 99 | 100 | 77 | 75 | |
| CIMR-AU5A0125UAA | 125 | 125 | 99 | 100 | Flange |
| CIMR-AU5A0145UAA | 145 | 150 | 130 | 125 | |
| CIMR-AU5A0192UAA | 192 | 200 | 172 | 150 | Flange |
| CIMR-AU5A0242UAA | 242 | 250 | 200 | 200 | |
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430. 150 Full-Load Current, Three-Phase Alternating Current Motors
Yaskawa A1000 600V, Single-Phase Input, (575V Three-Phase Output)
| Drive Model | Single Phase Input – Sizing Method A | Single Phase Input – Sizing Method B | ||||
| Without Additional Reactor | With Additional Reactor | |||||
| Motor Amps | Motor Size (HP) | Motor Amps | Motor Size (HP) | Motor Amps | Motor Size (HP) | |
| CIMR-AU5A0003FAA | 1.7 | 1 | 2.4 | 1.5 | 1.7 | 1 |
| CIMR-AU5A0004FAA | 2.4 | 1.5 | 2.7 | 2 | 2.7 | 2 |
| CIMR-AU5A0006FAA | 2.7 | 2 | 3.9 | 3 | 3.9 | 3 |
| CIMR-AU5A0009FAA | 3.9 | 3 | 6.1 | 5 | 6.1 | 5 |
| CIMR-AU5A0011FAA | 2.7 | 2 | 3.9 | 3 | 3.9 | 3 |
| CIMR-AU5A0017FAA | 6.1 | 5 | 6.1 | 5 | 9.0 | 7.5 |
| CIMR-AU5A0022FAA | 6.1 | 5 | 7.5 | 9.0 | 9.0 | 7.5 |
| CIMR-AU5A0027FAA | 9.0 | 7.5 | 11 | 10 | 11.0 | 10 |
| CIMR-AU5A0032FAA | 9.0 | 7.5 | 11 | 10 | 11.0 | 10 |
| CIMR-AU5A0041FAA | 17 | 15 | 17 | 15 | 22.0 | 20 |
| CIMR-AU5A0052FAA | 17 | 15 | 17 | 15 | 22.0 | 20 |
| CIMR-AU5A0062FAA | 27 | 25 | 27 | 25 | 32.0 | 30 |
| CIMR-AU5A0077FAA | 32 | 30 | 32 | 30 | 41 | 40 |
| CIMR-AU5A0099FAA | 32 | 30 | 32 | 30 | 41 | 40 |
| CIMR-AU5A0125AAA | 52 | 50 | 52 | 50 | 62 | 60 |
| CIMR-AU5A0145AAA | 52 | 50 | 52 | 50 | 62 | 60 |
| CIMR-AU5A0192AAA | 77 | 75 | 77 | 75 | 99 | 100 |
| CIMR-AU5A0242AAA | 77 | 75 | 77 | 75 | 99 | 100 |
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-AU2A0081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Only models ending in FAA (CIMR-AU2A0211FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- For Flange Drives, use the sizing method above to determine proper drive size. Use selected model numbers with “UAA” suffix instead of “FAA” or “AAA” suffix.
- Use single phase input sizing method A for applications requiring more than 86% motor power. When sizing with additional reactor, refer to “Reactors for Single Phase Input” section of this price book. Caution: Adding more impedance than specified will degrade performance.
- Use single phase input sizing method B for applications requiring a maximum of 86% motor power.
See more product please click here
Hãy là người đầu tiên nhận xét “Yaskawa A1000”
Bạn phải bđăng nhập để gửi đánh giá.
Đánh giá
Chưa có đánh giá nào.
