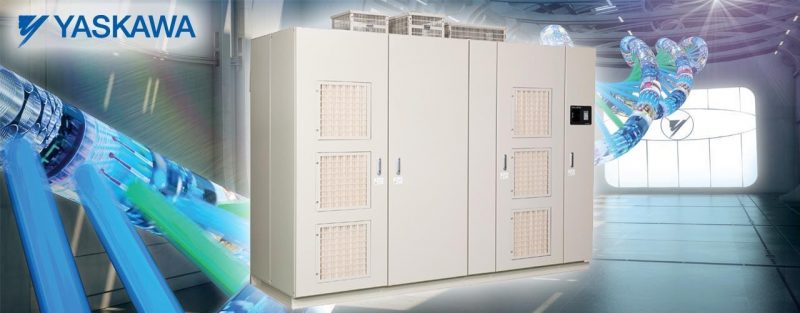

Giới thiệu dòng Biến tần trung thế Yaskawa MV1000
Giới thiệu chung về biến tần trung thế yaskawa mv1000
- Biến tần Yaskawa MV1000 là loại biến tần trung thế nhỏ nhất thế giới
- Thiết kế nhỏ gọn, Hiệu suất cao.
- Biến tần Yaskawa MV1000 Tiêt kiệm năng lượng
- Thân thiện với người dùng.
- Biến tần Yaskawa MV1000 thân thiện môi trường và an toàn.
- The FSDrive-MV1000 is Yaskawa’s latest medium-voltage AC drive with multi-outputs connected in series.
- The world’s smallest dimensions have been achieved with a simplified main circuit configuration.
- The drive includes many features such as stable continuous operations and the industry’s highest level of energy savings.
- The lineup covers input/output voltages from 2.4 kV to 11 kV, and meets the world’s major standards.

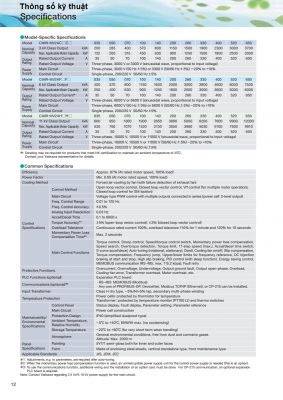

Thông số kỹ thuật
| Ứng dụng của biến tần trung thế Yaskawa | Tải thường: Quạt, bơm, máy thổi khí Tải nặng: máy nén khí, máy đùn ép, máy cuộn, máy công cụ… |
| Nguồn cấp | CIMR-MV2A (3.0kV/3.3 kV ):-Main Circuit: Three -phase, 3000 V (50 Hz ± 5 Hz) or 3300 V (50/60 Hz ± 5 Hz) —20% to +10%
-Control Circuit: Single-phase, 230 V 50/60 Hz ± 5% CIMR-MV2C (6.0 kV/6.6 kV): -Main Circuit: Three-phase, 6000 V (50 Hz ± 5 Hz) or 6600 V (50/60 Hz ± 5 Hz) —20% to +10%-Control Circuit: Single-phase, 230 V 50/60 Hz ± 5% CIMR-MV2A (10 kV/10.5 kV/11 kV): -Main Circuit: Three-phase, 10000 V, 10500 V or 11000 V (50/60 Hz ± 5 Hz) —20% to +10% -Control Circuit: Single-phase, 230 V 50/60 Hz ± 5% |
| Công suất | CIMR-MV2A (3.0kV/3.3 kV ): 132-3000KWCIMR-MV2C (6.0 kV/6.6 kV):250-6000KW
CIMR-MV2A (10 kV/10.5 kV/11 kV): 530-9910KW |
| Dòng điện | 35-650A |
| Dải tần số | 0.01 to 120 Hz |
| Mô men khởi động | ± 5% (open-loop vector control), ± 3% (closed loop vector control) |
| Khả năng quá tải | 110% trong vòng 1 phút và 120% trong 15 giây |
| Phương pháp điều khiển | Véc tơ vòng hở,véc tơ vòng kín, điều khiển V/f (cho vận hành nhiều động cơ), véc tơ vòng kín cho SM |
| Phanh hãm | Dùng phương pháp hãm trực tiếp |
| Ngõ vào | Ngõ vào điện áp: 2.4-11KV |
| Ngõ ra | Ngõ ra điện áp: 2.4-11KV |
| Chức năng bảo vệ | Quá dòng, quá áp, thấp áp, chạm đất đầu ra, đầu ra mở pha, quá tải, lỗi làm lạnh quạt, biến áp bị quá nóng, Motor quá nóng… |
| Chức năng chính | Kiểm soát mô-men xoắn, chuyển đổi kiểm soát tốc độ / mômen xoắn, bồi thường tổn thất điện năng tức thời, tìm kiếm tốc độ, phát hiện Overtorque, giới hạn mô-men xoắn, hãm lúc khởi động và dừng, điều khiển tiết kiệm năng lượng, truyền thông MEMOBUS (RS-485, max. 115,2 kbps), |
| Truyền thông | RS-232: Digital operator RS-485: MEMOBUS (Modbus) USB : DriveWizard Plus MV |
| Thiết bị mở rộng | Profibus-DP, DeviceNet, Ethernet hoặc CP215 có thể được cài đặt |
| Cấp bảo vệ | IP 20, IP 40 |

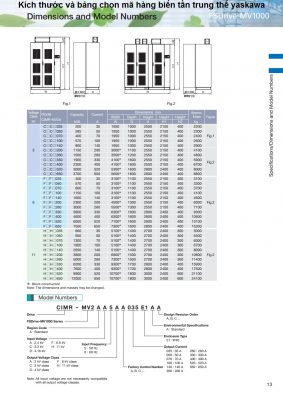

Kích thước và Sơ đồ chọn mã
Biến tần trung thế yaskawa 2.3 kV, 3-Phase
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
3.3 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2UA6AA052E1ABA
|
200
|
220 |
52
|
Three-Phase: 2400 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UA6AA068E1ABA
|
300
|
280 |
68
|
||
|
CIMR-MV2UA6AA080E1ABA
|
350
|
330 |
80
|
||
|
CIMR-MV2UA6AA093E1ABA
|
400
|
390 |
93
|
||
|
CIMR-MV2UA6AA102E1ABA
|
450
|
420 |
102
|
Three-Phase: 2400 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UA6AA115E1ABA
|
500
|
480 |
115
|
||
|
CIMR-MV2UA6AA135E1ABA
|
600
|
560 |
135
|
||
|
CIMR-MV2UA6AA160E1ABA
|
700
|
670 |
160
|
||
|
CIMR-MV2UA6AA180E1ABA
|
800
|
750 |
180
|
Three-Phase: 2400 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UA6AA205E1ABA
|
900
|
850 |
205
|
||
|
CIMR-MV2UA6AA220E1ABA
|
1000
|
920 |
220
|
||
|
CIMR-MV2UA6AA280E1ABA
|
1250
|
1160 |
280
|
Three-Phase: 2400 V
Sine wave, proportional to input voltage |
110% of rated output current for 60 sec.
120% of rated output current for 15 sec. |
|
CIMR-MV2UA6AA330E1ABA
|
1500
|
1370 |
330
|
||
|
CIMR-MV2UA6AA390E1ABA
|
1750
|
1620 |
390
|
||
|
CIMR-MV2UA6AA440E1ABA
|
2000
|
1820 |
440
|
Three-Phase: 2400 V
Sine wave, proportional to input voltage |
110% of rated output current for 60 sec.
120% of rated output current for 15 sec. |
|
CIMR-MV2UA6AA505E1ABA
|
2250
|
2100 |
505
|
||
|
CIMR-MV2UA6AA550E1ABA
|
2500
|
2300 |
550
|
||
|
CIMR-MV2UA6AA600E1ABA
|
2750
|
2500 |
600
|
||
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
3.3 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2TA6AA052E1ABA
|
200
|
220 |
52
|
Three-Phase: 2400 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2TA6AA068E1ABA
|
300
|
280 |
68
|
||
|
CIMR-MV2TA6AA080E1ABA
|
350
|
330 |
80
|
||
|
CIMR-MV2TA6AA093E1ABA
|
400
|
390 |
93
|
||
|
CIMR-MV2TA6AA102E1ABA
|
450
|
420 |
102
|
Three-Phase: 2400 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2TA6AA115E1ABA
|
500
|
480 |
115
|
||
|
CIMR-MV2TA6AA135E1ABA
|
600
|
560 |
135
|
||
|
CIMR-MV2TA6AA160E1ABA
|
700
|
670 |
160
|
||
|
CIMR-MV2TA6AA180E1ABA
|
800
|
750 |
180
|
Three-Phase: 2400 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2TA6AA205E1ABA
|
900
|
850 |
205
|
||
|
CIMR-MV2TA6AA220E1ABA
|
1000
|
920 |
220
|
||
|
CIMR-MV2TA6AA280E1ABA
|
1250
|
1160 |
280
|
Three-Phase: 2400 V
Sine wave, proportional to input voltage |
110% of rated output current for 60 sec.
120% of rated output current for 15 sec. |
|
CIMR-MV2TA6AA330E1ABA
|
1500
|
1370 |
330
|
||
|
CIMR-MV2TA6AA390E1ABA
|
1750
|
1620 |
390
|
||
|
CIMR-MV2TA6AA440E1ABA
|
2000
|
1820 |
440
|
Three-Phase: 2400 V
Sine wave, proportional to input voltage |
110% of rated output current for 60 sec.
120% of rated output current for 15 sec. |
|
CIMR-MV2TA6AA505E1ABA
|
2250
|
2100 |
505
|
||
|
CIMR-MV2TA6AA550E1ABA
|
2500
|
2300 |
550
|
||
|
CIMR-MV2TA6AA600E1ABA
|
2750
|
2500 |
600
|
||
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
3.3 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2AA6AA052E1ABA
|
200
|
220 |
52
|
Three-Phase: 2400 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AA6AA068E1ABA
|
300
|
280 |
68
|
||
|
CIMR-MV2AA6AA080E1ABA
|
350
|
330 |
80
|
||
|
CIMR-MV2AA6AA093E1ABA
|
400
|
390 |
93
|
||
|
CIMR-MV2AA6AA102E1ABA
|
450
|
420 |
102
|
Three-Phase: 2400 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AA6AA115E1ABA
|
500
|
480 |
115
|
||
|
CIMR-MV2AA6AA135E1ABA
|
600
|
560 |
135
|
||
|
CIMR-MV2AA6AA160E1ABA
|
700
|
670 |
160
|
||
|
CIMR-MV2AA6AA180E1ABA
|
800
|
750 |
180
|
Three-Phase: 2400 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AA6AA205E1ABA
|
900
|
850 |
205
|
||
|
CIMR-MV2AA6AA220E1ABA
|
1000
|
920 |
220
|
||
|
CIMR-MV2AA6AA280E1ABA
|
1250
|
1160 |
280
|
Three-Phase: 2400 V
Sine wave, proportional to input voltage |
110% of rated output current for 60 sec.
120% of rated output current for 15 sec. |
|
CIMR-MV2AA6AA330E1ABA
|
1500
|
1370 |
330
|
||
|
CIMR-MV2AA6AA390E1ABA
|
1750
|
1620 |
390
|
||
|
CIMR-MV2AA6AA440E1ABA
|
2000
|
1820 |
440
|
Three-Phase: 2400 V
Sine wave, proportional to input voltage |
110% of rated output current for 60 sec.
120% of rated output current for 15 sec. |
|
CIMR-MV2AA6AA505E1ABA
|
2250
|
2100 |
505
|
||
|
CIMR-MV2AA6AA550E1ABA
|
2500
|
2300 |
550
|
||
|
CIMR-MV2AA6AA600E1ABA
|
2750
|
2500 |
600
|
||
Biến tần trung thế yaskawa 3.3 kV, 3-Phase
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
3.3 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2UCA035ABA
|
175
|
200
|
35
|
Three-Phase: 3000 V
or 3300 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UCA050ABA
|
250
|
285
|
50
|
||
|
CIMR-MV2UCA070ABA
|
400
|
400
|
70
|
||
|
CIMR-MV2UCA100ABA
|
500
|
570
|
100
|
||
|
CIMR-MV2UCA140ABA
|
750
|
800
|
140
|
Three-Phase: 3000 V
or 3300 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UCA200ABA
|
1000
|
1150
|
200
|
||
|
CIMR-MV2UCA260ABA
|
1500
|
1500
|
260
|
||
|
CIMR-MV2UCA330ABA
|
2000
|
1900
|
330
|
||
|
CIMR-MV2UCA400ABA
|
2500
|
2300
|
400
|
Three-Phase: 3000 V
or 3300 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UCA520ABA
|
3500
|
3000
|
520
|
||
|
CIMR-MV2UCA650ABA
|
4000
|
3700
|
650
|
||
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
3.3 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2TCA035ABA
|
175
|
200
|
35
|
Three-Phase: 3000 V
or 3300 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2TCA050ABA
|
250
|
285
|
50
|
||
|
CIMR-MV2TCA070ABA
|
400
|
400
|
70
|
||
|
CIMR-MV2TCA100ABA
|
500
|
570
|
100
|
||
|
CIMR-MV2TCA140ABA
|
750
|
800
|
140
|
Three-Phase: 3000 V
or 3300 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2TCA200ABA
|
1000
|
1150
|
200
|
||
|
CIMR-MV2TCA260ABA
|
1500
|
1500
|
260
|
||
|
CIMR-MV2TCA330ABA
|
2000
|
1900
|
330
|
||
|
CIMR-MV2TCA400ABA
|
2500
|
2300
|
400
|
Three-Phase: 3000 V
or 3300 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2TCA520ABA
|
3500
|
3000
|
520
|
||
|
CIMR-MV2TCA650ABA
|
4000
|
3700
|
650
|
||
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
3.3 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2ACA035ABA
|
175
|
200
|
35
|
Three-Phase: 3000 V
or 3300 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2ACA050ABA
|
250
|
285
|
50
|
||
|
CIMR-MV2ACA070ABA
|
400
|
400
|
70
|
||
|
CIMR-MV2ACA100ABA
|
500
|
570
|
100
|
||
|
CIMR-MV2ACA140ABA
|
750
|
800
|
140
|
Three-Phase: 3000 V
or 3300 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2ACA200ABA
|
1000
|
1150
|
200
|
||
|
CIMR-MV2ACA260ABA
|
1500
|
1500
|
260
|
||
|
CIMR-MV2ACA330ABA
|
2000
|
1900
|
330
|
||
|
CIMR-MV2ACA400ABA
|
2500
|
2300
|
400
|
Three-Phase: 3000 V
or 3300 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2ACA520ABA
|
3500
|
3000
|
520
|
||
|
CIMR-MV2ACA650ABA
|
4000
|
3700
|
650
|
||
Biến tần trung thế yaskawa 4.16 kV, 3-Phase
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
4.16 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2UD6DA039ABA
|
300
|
280
|
39
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA052ABA
|
400
|
375
|
52
|
||
|
CIMR-MV2UD6DA058ABA
|
450
|
420
|
58
|
||
|
CIMR-MV2UD6DA064ABA
|
500
|
460
|
64
|
||
|
CIMR-MV2UD6DA077ABA
|
600
|
550
|
77
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA093ABA
|
700
|
670
|
93
|
||
|
CIMR-MV2UD6DA102ABA
|
800
|
735
|
102
|
||
|
CIMR-MV2UD6DA115ABA
|
900
|
830
|
115
|
||
|
CIMR-MV2UD6DA125ABA
|
1000
|
900
|
125
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA155ABA
|
1250
|
1120
|
155
|
||
|
CIMR-MV2UD6DA190ABA
|
1500
|
1370
|
190
|
||
|
CIMR-MV2UD6DA220ABA
|
1750
|
1590
|
220
|
||
|
CIMR-MV2UD6DA250ABA
|
2000
|
1800
|
250
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA285ABA
|
2250
|
2050
|
285
|
||
|
CIMR-MV2UD6DA315ABA
|
2500
|
2270
|
315
|
||
|
CIMR-MV2UD6DA340ABA
|
2750
|
2500
|
340
|
||
|
CIMR-MV2UD6DA375ABA
|
3000
|
2700
|
375
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA440ABA
|
3500
|
3170
|
440
|
||
|
CIMR-MV2UD6DA505ABA
|
4000
|
3640
|
505
|
||
|
CIMR-MV2UD6DA575ABA
|
4500
|
4140
|
575
|
||
|
CIMR-MV2UD6DA625ABA
|
5000
|
4500
|
625
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA650ABA
|
5200
|
4680
|
650
|
||
|
CIMR-MV2UD6DA700ABA
|
5500
|
5040
|
700
|
||
|
CIMR-MV2UD6DA800ABA
|
6000
|
5760
|
800
|
||
|
CIMR-MV2UD6DA870ABA
|
7000
|
6120
|
870
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA990ABA
|
8000
|
7130
|
990
|
||
|
CIMR-MV2UD6DAB20ABA
|
9000
|
8070
|
1120
|
||
|
CIMR-MV2UD6DAC35ABA
|
10000
|
8900
|
1235
|
||
|
CIMR-MV2UD6DAD50ABA
|
11000
|
9725
|
1350
|
||
|
CIMR-MV2UD6DAF25ABA
|
12000
|
10985
|
1525
|
||
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
4.16 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2UD6DA039ABA
|
300
|
280
|
39
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA052ABA
|
400
|
375
|
52
|
||
|
CIMR-MV2UD6DA058ABA
|
450
|
420
|
58
|
||
|
CIMR-MV2UD6DA064ABA
|
500
|
460
|
64
|
||
|
CIMR-MV2UD6DA077ABA
|
600
|
550
|
77
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA093ABA
|
700
|
670
|
93
|
||
|
CIMR-MV2UD6DA102ABA
|
800
|
735
|
102
|
||
|
CIMR-MV2UD6DA115ABA
|
900
|
830
|
115
|
||
|
CIMR-MV2UD6DA125ABA
|
1000
|
900
|
125
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA155ABA
|
1250
|
1120
|
155
|
||
|
CIMR-MV2UD6DA190ABA
|
1500
|
1370
|
190
|
||
|
CIMR-MV2UD6DA220ABA
|
1750
|
1590
|
220
|
||
|
CIMR-MV2UD6DA250ABA
|
2000
|
1800
|
250
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA285ABA
|
2250
|
2050
|
285
|
||
|
CIMR-MV2UD6DA315ABA
|
2500
|
2270
|
315
|
||
|
CIMR-MV2UD6DA340ABA
|
2750
|
2500
|
340
|
||
|
CIMR-MV2UD6DA375ABA
|
3000
|
2700
|
375
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA440ABA
|
3500
|
3170
|
440
|
||
|
CIMR-MV2UD6DA505ABA
|
4000
|
3640
|
505
|
||
|
CIMR-MV2UD6DA575ABA
|
4500
|
4140
|
575
|
||
|
CIMR-MV2UD6DA625ABA
|
5000
|
4500
|
625
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA650ABA
|
5200
|
4680
|
650
|
||
|
CIMR-MV2UD6DA700ABA
|
5500
|
5040
|
700
|
||
|
CIMR-MV2UD6DA800ABA
|
6000
|
5760
|
800
|
||
|
CIMR-MV2UD6DA870ABA
|
7000
|
6120
|
870
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UD6DA990ABA
|
8000
|
7130
|
990
|
||
|
CIMR-MV2UD6DAB20ABA
|
9000
|
8070
|
1120
|
||
|
CIMR-MV2UD6DAC35ABA
|
10000
|
8900
|
1235
|
||
|
CIMR-MV2UD6DAD50ABA
|
11000
|
9725
|
1350
|
||
|
CIMR-MV2UD6DAF25ABA
|
12000
|
10985
|
1525
|
||
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
4.16 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2AD6DA039ABA
|
300
|
280
|
39
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AD6DA052ABA
|
400
|
375
|
52
|
||
|
CIMR-MV2AD6DA058ABA
|
450
|
420
|
58
|
||
|
CIMR-MV2AD6DA064ABA
|
500
|
460
|
64
|
||
|
CIMR-MV2AD6DA077ABA
|
600
|
550
|
77
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AD6DA093ABA
|
700
|
670
|
93
|
||
|
CIMR-MV2AD6DA102ABA
|
800
|
735
|
102
|
||
|
CIMR-MV2AD6DA115ABA
|
900
|
830
|
115
|
||
|
CIMR-MV2AD6DA125ABA
|
1000
|
900
|
125
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AD6DA155ABA
|
1250
|
1120
|
155
|
||
|
CIMR-MV2AD6DA190ABA
|
1500
|
1370
|
190
|
||
|
CIMR-MV2AD6DA220ABA
|
1750
|
1590
|
220
|
||
|
CIMR-MV2AD6DA250ABA
|
2000
|
1800
|
250
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AD6DA285ABA
|
2250
|
2050
|
285
|
||
|
CIMR-MV2AD6DA315ABA
|
2500
|
2270
|
315
|
||
|
CIMR-MV2AD6DA340ABA
|
2750
|
2500
|
340
|
||
|
CIMR-MV2AD6DA375ABA
|
3000
|
2700
|
375
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AD6DA440ABA
|
3500
|
3170
|
440
|
||
|
CIMR-MV2AD6DA505ABA
|
4000
|
3640
|
505
|
||
|
CIMR-MV2AD6DA575ABA
|
4500
|
4140
|
575
|
||
|
CIMR-MV2AD6DA625ABA
|
5000
|
4500
|
625
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AD6DA650ABA
|
5200
|
4680
|
650
|
||
|
CIMR-MV2AD6DA700ABA
|
5500
|
5040
|
700
|
||
|
CIMR-MV2AD6DA800ABA
|
6000
|
5760
|
800
|
||
|
CIMR-MV2AD6DA870ABA
|
7000
|
6120
|
870
|
Three-Phase: 4160 V Sine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AD6DA990ABA
|
8000
|
7130
|
990
|
||
|
CIMR-MV2AD6DAB20ABA
|
9000
|
8070
|
1120
|
||
|
CIMR-MV2AD6DAC35ABA
|
10000
|
8900
|
1235
|
||
|
CIMR-MV2AD6DAD50ABA
|
11000
|
9725
|
1350
|
||
|
CIMR-MV2AD6DAF25ABA
|
12000
|
10985
|
1525
|
||
Biến tần trung thế yaskawa 6.6 kV, 3-Phase
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
6.6 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2UF6FA035ABA
|
350
|
400
|
35
|
Three-Phase: 6000 V
or 6600 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UF6FA050ABA
|
500
|
570
|
50
|
||
|
CIMR-MV2UF6FA070ABA
|
800
|
800
|
70
|
||
|
CIMR-MV2UF6FA100ABA
|
1250
|
1150
|
100
|
||
|
CIMR-MV2UF6FA140ABA
|
1750
|
1600
|
140
|
||
|
CIMR-MV2UF6FA200ABA
|
2500
|
2300
|
200
|
Three-Phase: 6000 V
or 6600 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2UF6FA260ABA
|
3250
|
3000
|
260
|
||
|
CIMR-MV2UF6FA330ABA
|
4000
|
3800
|
330
|
||
|
CIMR-MV2UF6FA400ABA
|
5000
|
4600
|
400
|
||
|
CIMR-MV2UF6FA530ABA
|
6500
|
6000
|
520
|
||
|
CIMR-MV2UF6FA650ABA
|
8000
|
7500
|
650
|
||
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
6.6 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2TF6FA035ABA
|
350
|
400
|
35
|
Three-Phase: 6000 V
or 6600 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2TF6FA050ABA
|
500
|
570
|
50
|
||
|
CIMR-MV2TF6FA070ABA
|
800
|
800
|
70
|
||
|
CIMR-MV2TF6FA100ABA
|
1250
|
1150
|
100
|
||
|
CIMR-MV2TF6FA140ABA
|
1750
|
1600
|
140
|
||
|
CIMR-MV2TF6FA200ABA
|
2500
|
2300
|
200
|
Three-Phase: 6000 V
or 6600 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2TF6FA260ABA
|
3250
|
3000
|
260
|
||
|
CIMR-MV2TF6FA330ABA
|
4000
|
3800
|
330
|
||
|
CIMR-MV2TF6FA400ABA
|
5000
|
4600
|
400
|
||
|
CIMR-MV2TF6FA530ABA
|
6500
|
6000
|
520
|
||
|
CIMR-MV2TF6FA650ABA
|
8000
|
7500
|
650
|
||
|
Drive Model Number
|
Nominal Capacity | Output Rating | |||
|---|---|---|---|---|---|
|
Motor Capacity (HP)
|
6.6 kV Output (kVA)
|
Rated Output Current (Amps)
|
Rated Output Voltage (V) |
Overload Ratings
|
|
|
CIMR-MV2AF6FA035ABA
|
350
|
400
|
35
|
Three-Phase: 6000 V
or 6600 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AF6FA050ABA
|
500
|
570
|
50
|
||
|
CIMR-MV2AF6FA070ABA
|
800
|
800
|
70
|
||
|
CIMR-MV2AF6FA100ABA
|
1250
|
1150
|
100
|
||
|
CIMR-MV2AF6FA140ABA
|
1750
|
1600
|
140
|
||
|
CIMR-MV2AF6FA200ABA
|
2500
|
2300
|
200
|
Three-Phase: 6000 V
or 6600 VSine wave, proportional to input voltage |
110% of rated output current for 60 sec. 120% of rated output current for 15 sec. |
|
CIMR-MV2AF6FA260ABA
|
3250
|
3000
|
260
|
||
|
CIMR-MV2AF6FA330ABA
|
4000
|
3800
|
330
|
||
|
CIMR-MV2AF6FA400ABA
|
5000
|
4600
|
400
|
||
|
CIMR-MV2AF6FA530ABA
|
6500
|
6000
|
520
|
||
|
CIMR-MV2AF6FA650ABA
|
8000
|
7500
|
650
|
||
Tham khảo Các sản phẩm phân phối kinh doanh chính :
Với đội ngũ quản lý kỹ sư chuyên nghiệp nhiều kinh nghiệm đông đảo kỹ thuật viên công nhân lành nghề Công ty TNHH Hà Phong luôn đáp ứng được đa dạng yêu cầu từ Quý khách hàng với chất lượng tốt nhất.
Chúng tôi luôn luôn nỗ lực cải tiến hoàn thiện hệ thống để mang lại cho khách hàng những sản phẩm và dịch vụ tốt nhất, mục tiêu của chúng tôi luôn luôn lấy sự hài lòng của khách hàng làm nền tảng cho sự phát triển bền vững.
Chúng tôi trân trọng cảm ơn Quý khách hàng đã quan tâm và sử dụng sản phẩm dịch vụ của chúng tôi và mong muốn đồng hành cùng sự phát triển của Quý khách hàng
Hãy là người đầu tiên nhận xét “Biến tần trung thế Yaskawa”
Bạn phải bđăng nhập để gửi đánh giá.
Đánh giá
Chưa có đánh giá nào.
