SGD7S MECHATROLINK-III
4/11/2021
SGD7S MECHATROLINK-III
Video
Flyer Brochure Tech Supplement
Core Manuals Configurator Instructions

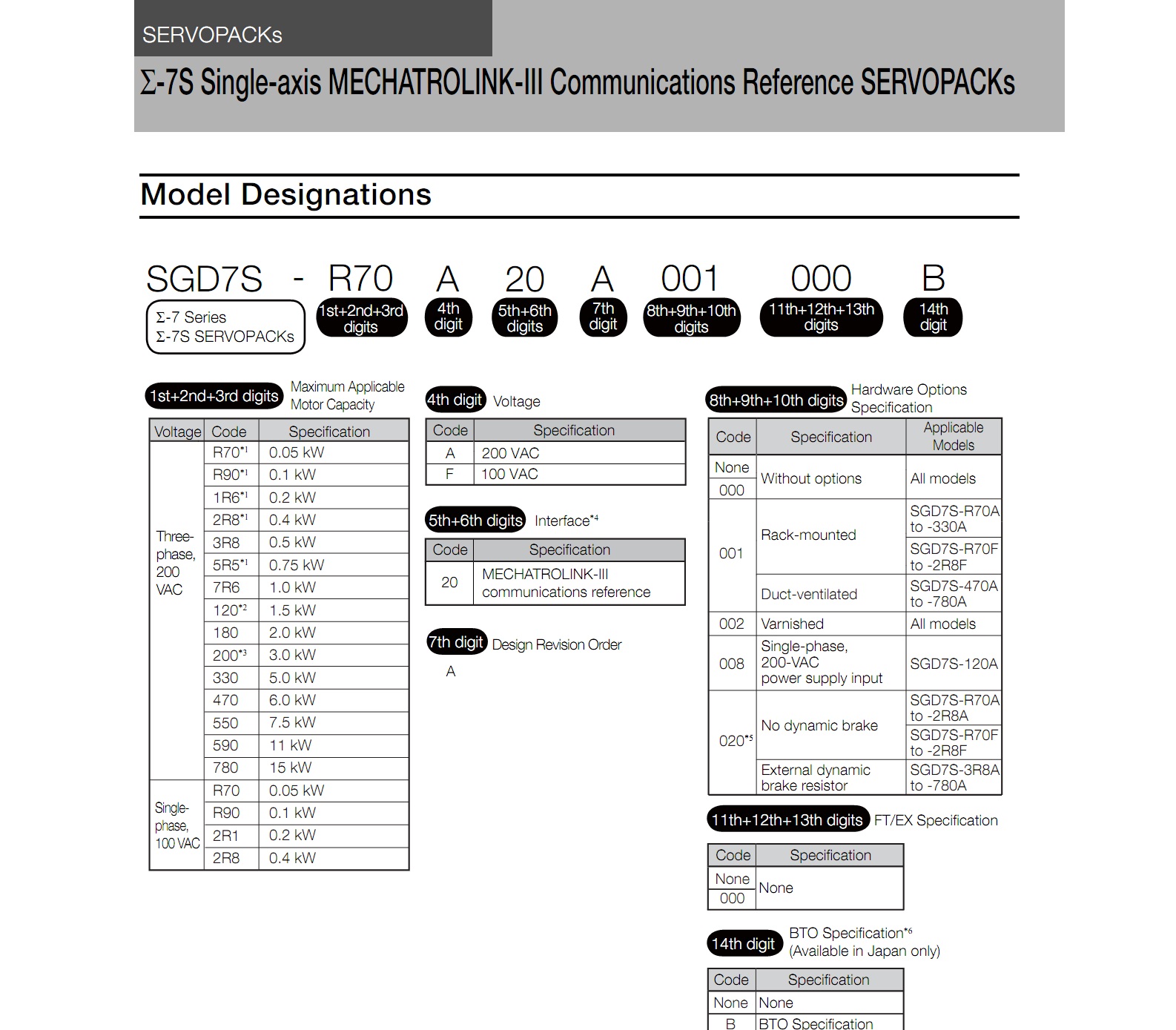

SGD7S MECHATROLINK-III Model
SGD7S MECHATROLINK-III 100V Input (24-bit encoder)
|
Part Number
|
Rated Output
|
|---|---|
| SGD7S-R70F30A | 50W |
| SGD7S-R90F30A | 100W |
| SGD7S-2R1F30A | 200W |
| SGD7S-2R8F30A | 400W |
SGD7S MECHATROLINK-III 200V Input (24-bit encoder)
|
Rated Output
|
|
|---|---|
| SGD7S-R70A20A | 50W |
| SGD7S-R70A30A | 50W |
| SGD7S-R90A20A | 100W |
| SGD7S-R90A30A | 100W |
| SGD7S-1R6A20A | 200W |
| SGD7S-1R6A30A | 200W |
| SGD7S-2R8A20A | 400W |
| SGD7S-2R8A30A | 400W |
| SGD7S-3R8A20A | 500W |
| SGD7S-3R8A30A | 500W |
| SGD7S-5R5A20A | 750W |
| SGD7S-5R5A30A | 750W |
| SGD7S-7R6A20A | 1.0kW |
| SGD7S-7R6A30A | 1.0kW |
| SGD7S-120A20A | 1.5kW |
| SGD7S-120A30A | 1.5kW |
| SGD7S-180A20A | 2.0kW |
| SGD7S-180A30A | 2.0kW |
| SGD7S-200A20A | 3.0kW |
| SGD7S-200A30A | 3.0kW |
| SGD7S-330A20A | 5.0kW |
| SGD7S-330A30A | 5.0kW |
| SGD7S-470A20A | 6.0kW |
| SGD7S-470A30A | 6.0kW |
| SGD7S-550A20A | 7.5kW |
| SGD7S-550A30A | 7.5kW |
| SGD7S-590A20A | 11kW |
| SGD7S-590A30A | 11kW |
| SGD7S-780A20A | 15kW |
| SGD7S-780A30A | 15kW |
SGD7S MECHATROLINK-III 400V Input (24-bit encoder)
|
Part Number
|
Rated Output
|
|---|---|
| SGD7S-1R9D30B000F64 | 500W |
| SGD7S-3R5D30B000F64 | 1.0kW |
| SGD7S-5R4D30B000F64 | 1.5kW |
| SGD7S-8R4D30B000F64 | 2.0kW |
| SGD7S-120D30B000F64 | 3.0kW |
| SGD7S-170D30B000F64 | 5.0kW |
| SGD7S-210D30B000F64 | 6.0kW |
| SGD7S-260D30B000F64 | 7.5kW |
| SGD7S-280D30B000F64 | 11kW |
| SGD7S-370D30B000F64 | 15kW |

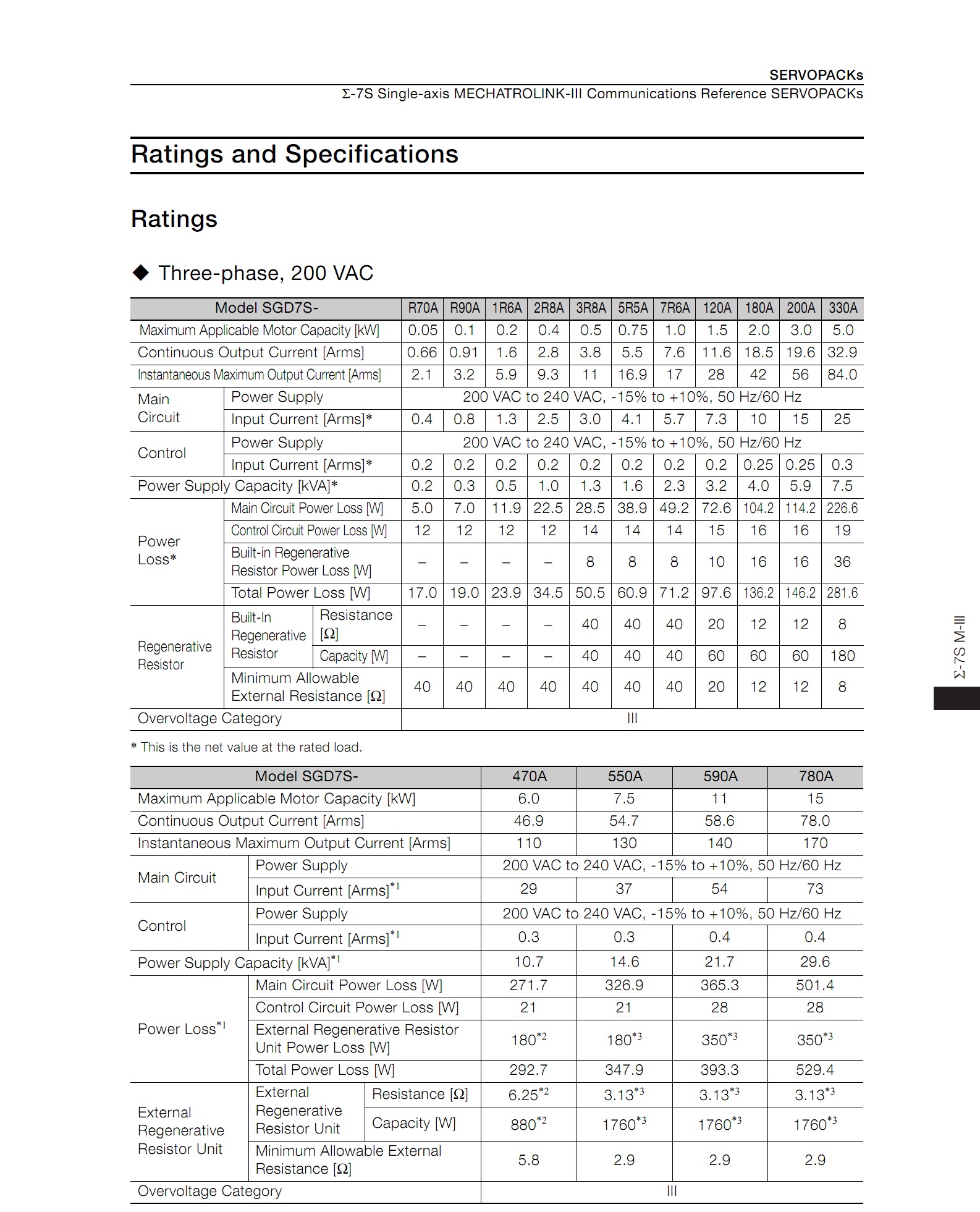

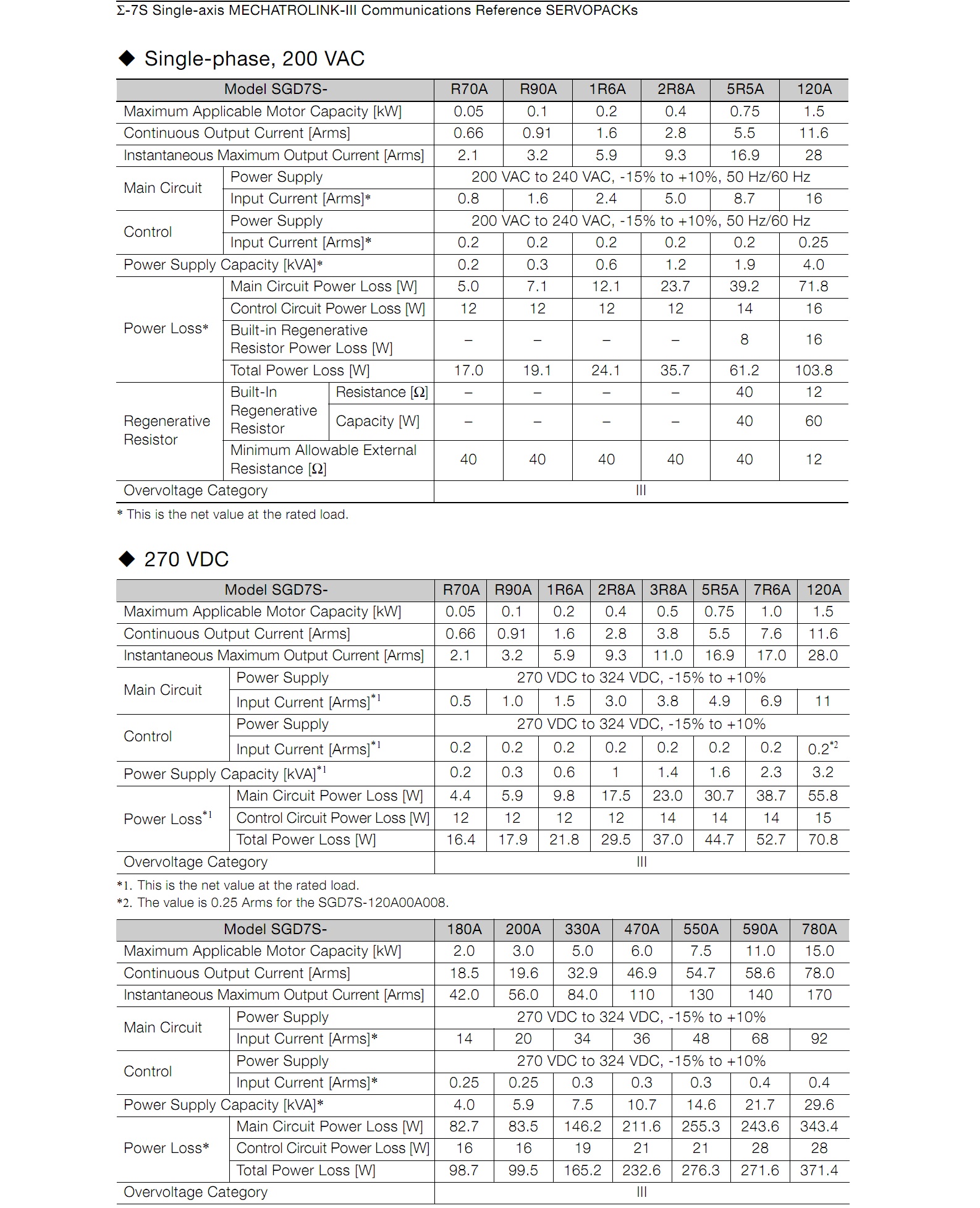

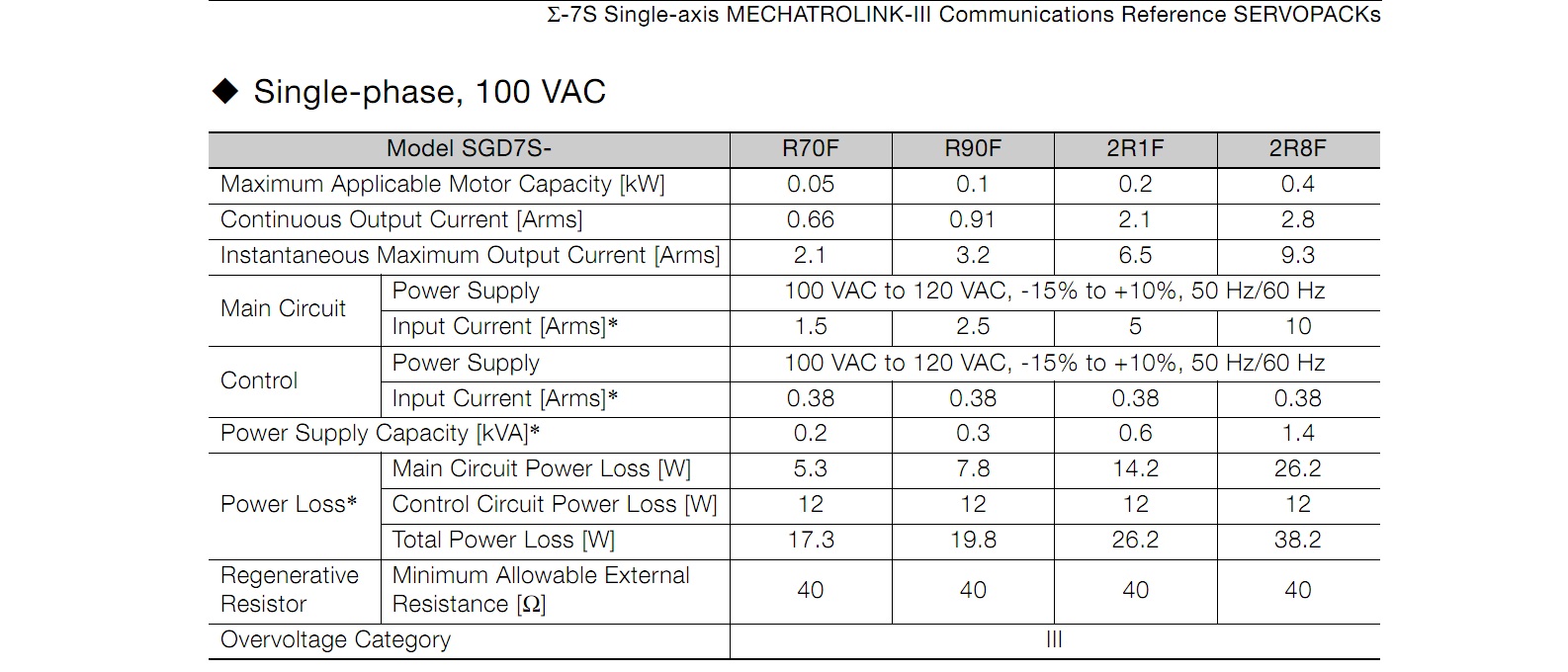

SGD7S MECHATROLINK-III Specification
