SGD7S MECHATROLINK-II
4/11/2021
ServoPacks yaskawa SGD7S MECHATROLINK-II
Video
Flyer Brochure Tech Supplement
Core Manuals Configurator Instructions

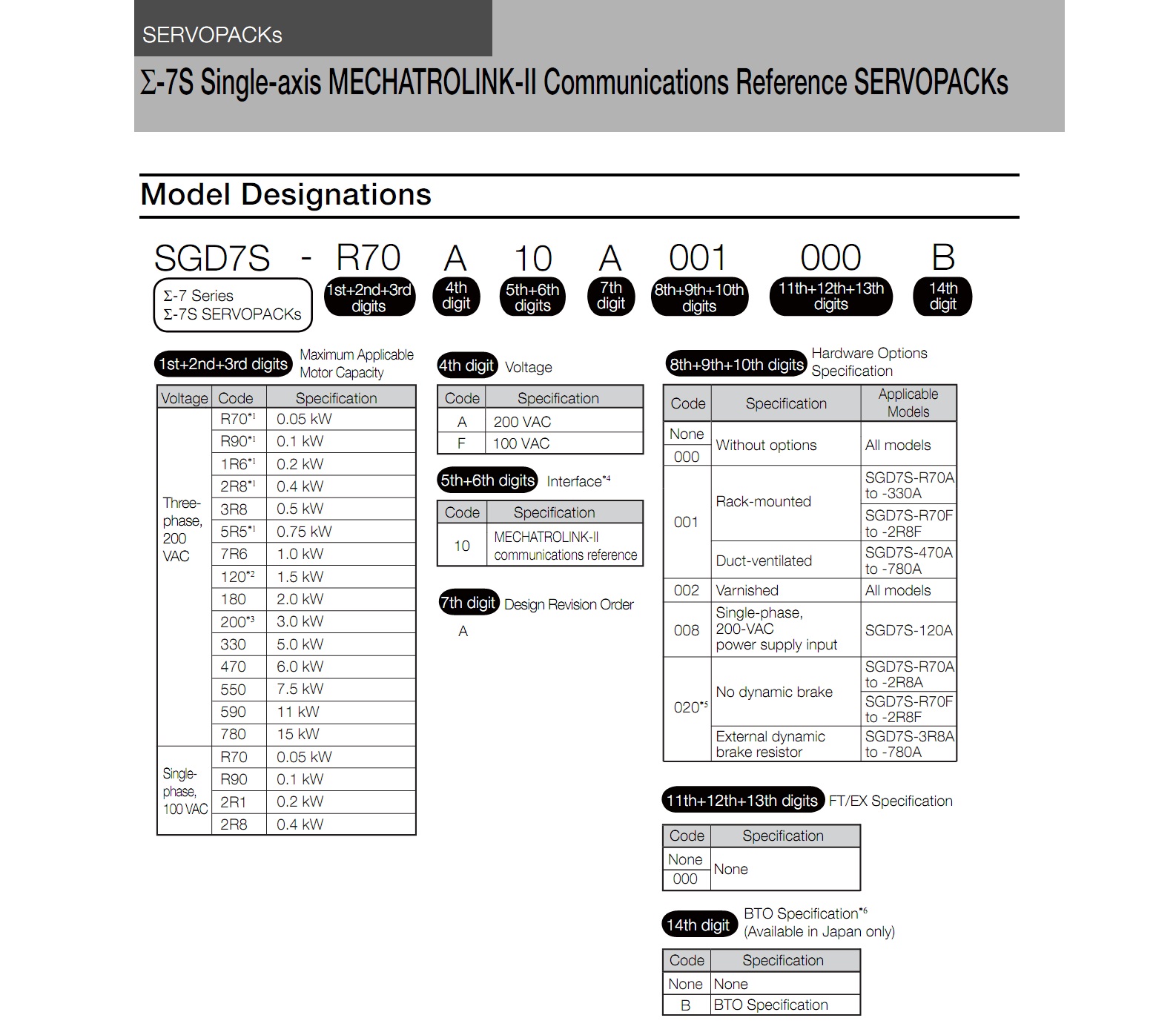

SGD7S MECHATROLINK-II Models & Ratings
SGD7S MECHATROLINK-II 100V Input (24-bit encoder)
|
Part Number
|
Rated Output
|
|---|---|
| SGD7S-R70F10A | 50W |
| SGD7S-R90F10A | 100W |
| SGD7S-2R1F10A | 200W |
| SGD7S-2R8F10A | 400W |
SGD7S MECHATROLINK-II 200V Input (24-bit encoder)
|
Rated Output
|
|
|---|---|
| SGD7S-R70A10A | 50W |
| SGD7S-R70A10A | 50W |
| SGD7S-R90A10A | 100W |
| SGD7S-R90A10A | 100W |
| SGD7S-1R6A10A | 200W |
| SGD7S-1R6A10A | 200W |
| SGD7S-2R8A10A | 400W |
| SGD7S-2R8A10A | 400W |
| SGD7S-3R8A10A | 500W |
| SGD7S-3R8A10A | 500W |
| SGD7S-5R5A10A | 750W |
| SGD7S-5R5A10A | 750W |
| SGD7S-7R6A10A | 1.0kW |
| SGD7S-7R6A10A | 1.0kW |
| SGD7S-120A10A | 1.5kW |
| SGD7S-120A10A | 1.5kW |
| SGD7S-180A10A | 2.0kW |
| SGD7S-180A10A | 2.0kW |
| SGD7S-200A10A | 3.0kW |
| SGD7S-200A10A | 3.0kW |
| SGD7S-330A10A | 5.0kW |
| SGD7S-330A10A | 5.0kW |
| SGD7S-470A10A | 6.0kW |
| SGD7S-470A10A | 6.0kW |
| SGD7S-550A10A | 7.5kW |
| SGD7S-550A10A | 7.5kW |
| SGD7S-590A10A | 11kW |
| SGD7S-590A10A | 11kW |
| SGD7S-780A10A | 15kW |
| SGD7S-780A10A | 15kW |
SGD7S MECHATROLINK-II 400V Input (24-bit encoder)
|
Part Number
|
Rated Output
|
|---|---|
| SGD7S-1R9D30B000F64 | 500W |
| SGD7S-3R5D30B000F64 | 1.0kW |
| SGD7S-5R4D30B000F64 | 1.5kW |
| SGD7S-8R4D30B000F64 | 2.0kW |
| SGD7S-120D30B000F64 | 3.0kW |
| SGD7S-170D30B000F64 | 5.0kW |
| SGD7S-210D30B000F64 | 6.0kW |
| SGD7S-260D30B000F64 | 7.5kW |
| SGD7S-280D30B000F64 | 11kW |
| SGD7S-370D30B000F64 | 15kW |

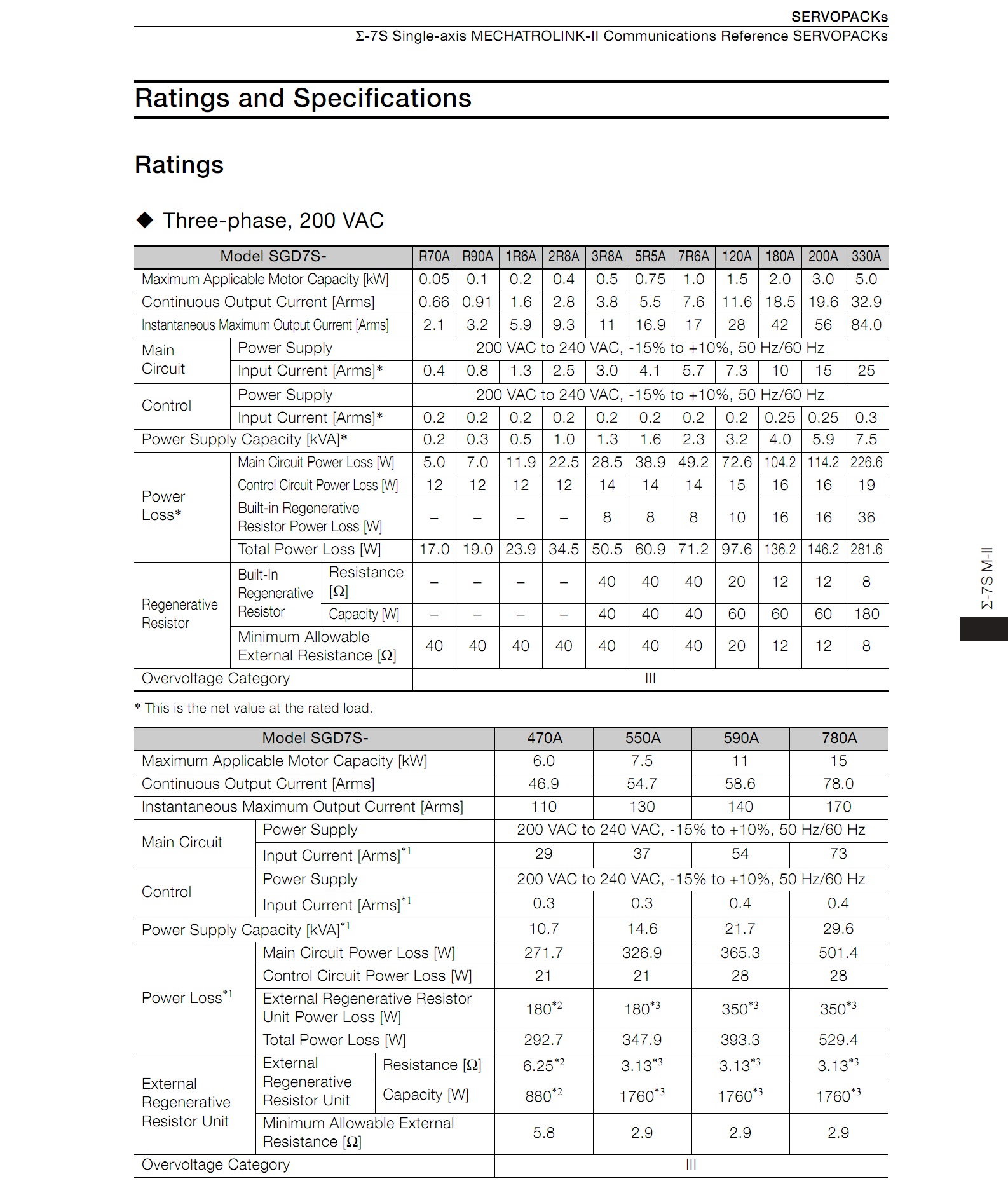

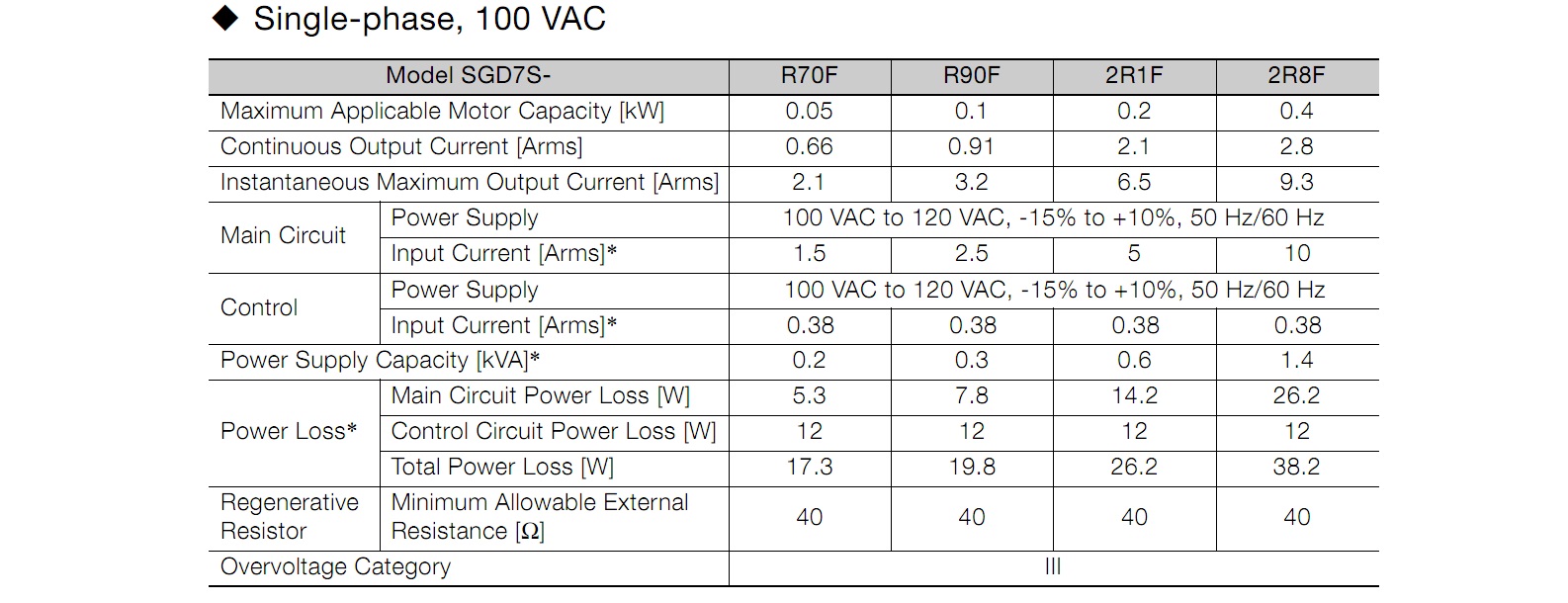

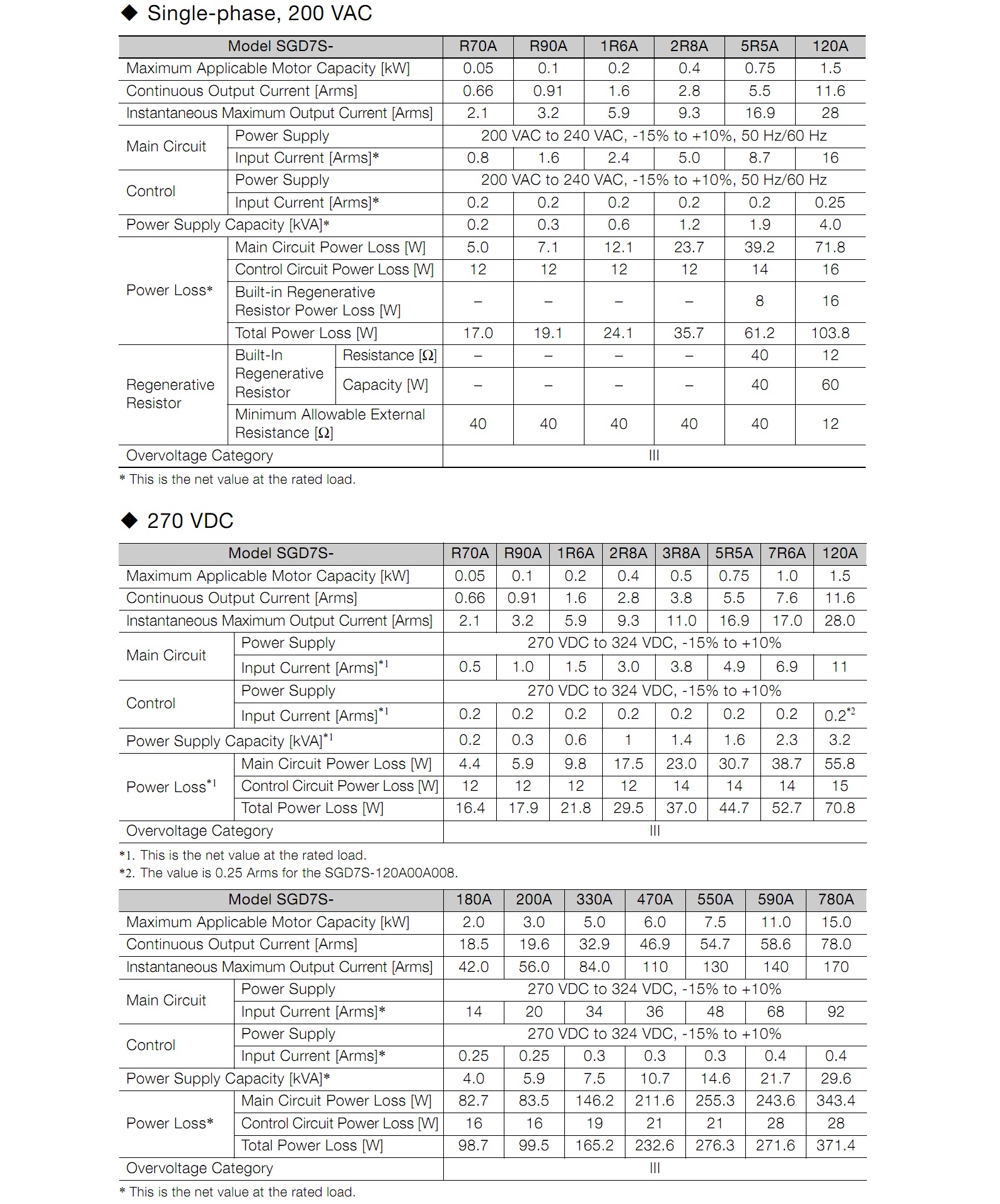

SGD7S MECHATROLINK-II Specification
