S7J Gear Motors Optimized for Load Matching Success
Get maximum responsiveness from a gear motor engineered to match one of Yaskawa’s most versatile servo systems. The S7J was designed to extend the performance of Yaskawa SGM7J servo motors, a series known for maximum responsiveness in applications requiring precise load matching. S7J provides gear ratio options to 50/1 for precise motion in low capacity applications, while assuring world class accuracy at rated speeds to 3000 rpm and torque ratings up to 2.39 N-m (21 in-lb).
S7J Gear Motors Features Highlights:
- Yaskawa factory installed and tested for a perfect fit and guaranteed long term performance
- Backed by a full Yaskawa warranty
- Gear ratios: 3/1, 5/1, 10/1, 25/1 or 50/1
- Quiet helical cut gears reduce vibration and noise
- High precision operation with a standard backlash of 5 arc-min
- High rigidity and torque capacity with a design featuring uncaged needle roller bearings
- Optimized adapter bushing minimizes inertia, allowing more output torque to be realized
- Seal leakage is prevented by high viscosity, anti-separation grease that won’t liquefy or migrate away from gears
- Maintenance free grease for the life of the unit, regardless of the gearhead’s orientation
S7J Gear Motors
S7J Gear Motors 200V
|

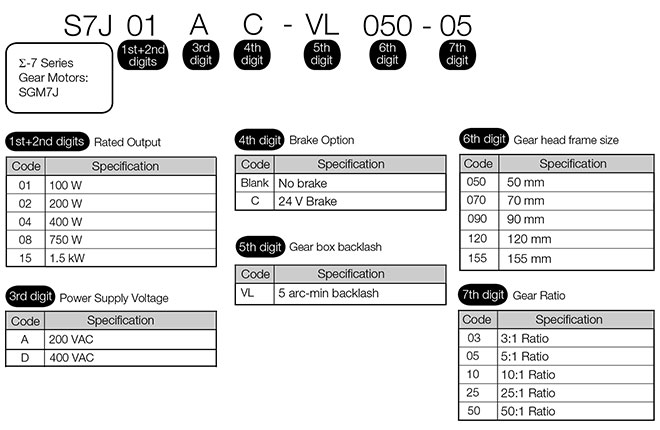

Gear Motor Model Number
|
Base Servo Motor Model (SGM7J-)
|
Gear Ratio
|
|---|---|---|
|
S7J01A□-VL050-03
|
01A7D6□
|
3:1 |
|
S7J01A□-VL050-05
|
5:1 |
|
|
S7J01A□-VL050-10
|
10:1 |
|
|
S7J01A□-VL050-25
|
25:1 |
|
|
S7J01A□-VL070-50
|
50:1 |
|
|
S7J02A□-VL050-03
|
02A7D6□
|
3:1 |
|
S7J02A□-VL050-05
|
5:1 |
|
|
S7J02A□-VL070-10
|
10:1 |
|
|
S7J02A□-VL070-25
|
25:1 |
|
|
S7J02A□-VL070-50
|
50:1 |
|
|
S7J04A□-VL050-03
|
04A7D6□
|
3:1 |
|
S7J04A□-VL050-05
|
5:1 |
|
|
S7J04A□-VL070-10
|
10:1 |
|
|
S7J04A□-VL070-25
|
25:1 |
|
|
S7J04A□-VL090-50
|
50:1 |
|
|
S7J08A□-VL070-03
|
08A7D6□
|
3:1 |
|
S7J08A□-VL070-05
|
5:1 |
|
|
S7J08A□-VL090-10
|
10:1 |
|
|
S7J08A□-VL090-25
|
25:1 |
|
|
S7J08A□-VL120-50
|
50:1 |
S7J Gear Motors 400V
|
Gear Motor Model Number
|
Base Servo Motor Model (SGM7J-)
|
Gear Ratio
|
|---|---|---|
|
S7J02D□-VL050-03
|
02D7F6□
|
3:1 |
|
S7J02D□-VL050-05
|
5:1 |
|
|
S7J02D□-VL050-10
|
10:1 |
|
|
S7J02D□-VL070-25
|
25:1 |
|
|
S7J02D□-VL070-50
|
50:1 |
|
|
S7J04D□-VL050-03
|
04D7F6□
|
3:1 |
|
S7J04D□-VL050-05
|
5:1 |
|
|
S7J04D□-VL070-10
|
10:1 |
|
|
S7J04D□-VL070-25
|
25:1 |
|
|
S7J04D□-VL090-50
|
50:1 |
|
|
S7J08D□-VL070-03
|
08D7F6□
|
3:1 |
|
S7J08D□-VL070-05
|
5:1 |
|
|
S7J08D□-VL090-10
|
10:1 |
|
|
S7J08D□-VL090-25
|
25:1 |
|
|
S7J08D□-VL120-50
|
50:1 |
