Động cơ Servo Yaskawa SGMMV
Models with DC Power Supply Input
200 V Model | Voltage | Kw | Torque | Peak Torque | Current | Max. Current | Acceleration |
---|---|---|---|---|---|---|---|
SGMMV-B3E | 24/48 VDC | 3.3 W | 0.0105 Nm | 0.0263 Nm | 1.5 Arms | 3.6 Arms | 238000 rad/s2 |
SGMMV-B5E | 24/48 VDC | 5.5 W | 0.0175 Nm | 0.0438 Nm | 1.5 Arms | 3.7 Arms | 220000 rad/s2 |
SGMMV-B9E | 24/48 VDC | 11 W | 0.0350 Nm | 0.0875 Nm | 1.7 Arms | 4.1 Arms | 158000 rad/s2 |
SGMMV-A1E | 24/48 VDC | 10 W | 0.0318 Nm | 0.0955 Nm | 2.1 Arms | 6.1 Arms | 117000 rad/s2 |
SGMMV-A2E | 24/48 VDC | 20 W | 0.0637 Nm | 0.191 Nm | 2.0 Arms | 5.8 Arms | 137000 rad/s2 |
SGMMV-A3E | 24/48 VDC | 30 W | 0.0955 Nm | 0.286 Nm | 2.9 Arms | 8.6 Arms | 143000 rad/s2 |
SGMMV





Features Highlights:
- Low inertia
- High resolution absolute serial encoder: 17-bit
- Maximum Speed: 6000 rpm
- Wide Selection: 3W to 30W

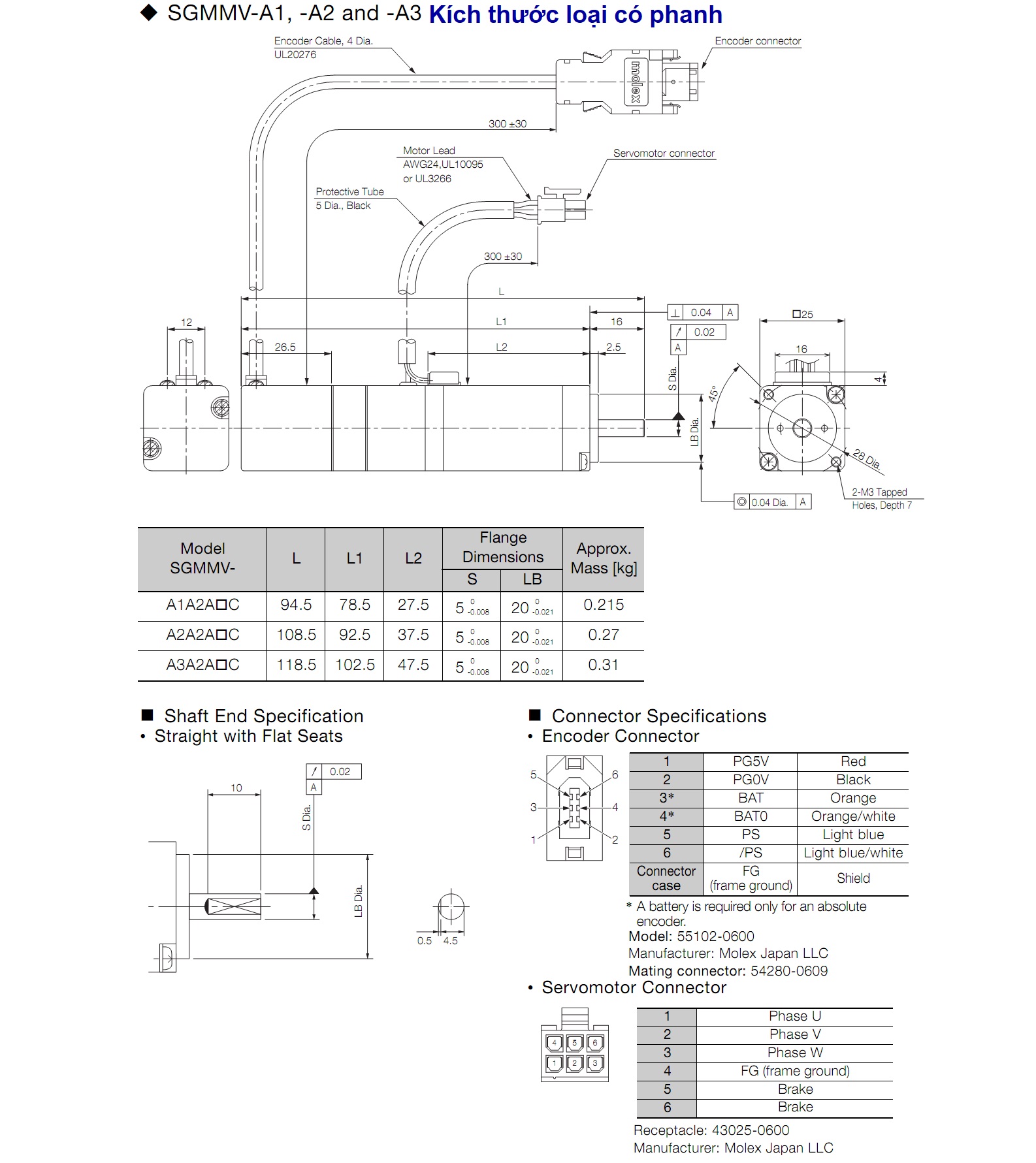

- Holding Brake option available
- AC or DC Input Power
