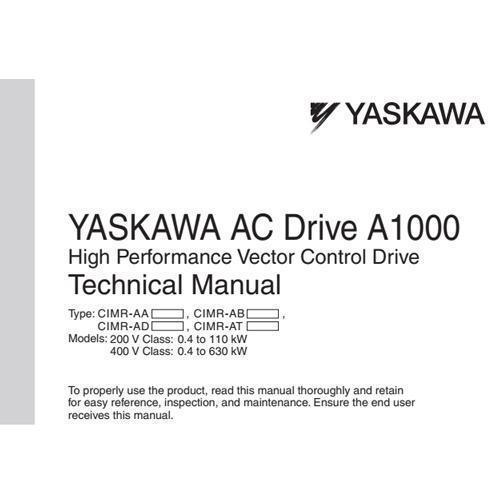

Yaskawa a1000 manual

Yaskawa a1000 manual download >>>>> Click here

The A1000 is a full featured drive, providing outstanding quality, performance, flexibility, and environmental friendliness through 1000HP. Enjoy network communications, feedback, and expandable I/O to control anything from simple fans and pumps to complex machines. For new installations or retrofits, the A1000 provides a single robust solution, regardless of your application.

Yaskawa a1000 manual

Closed or open loop vector control for outstanding regulation, torque production, and position control capability.
Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature.
High Frequency Injection enables high precision open loop control of Interior Permanent Magnet Motors.
Fast acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand.
High Slip Braking reduces installation cost and the need for dynamic braking resistors
Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost.
DriveWizard computer software and Application Sets for easy configuration.
Auxiliary Control Power Unit maximizes production time and efficiency by maintaining network communication while main power is removed.
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL2, PLd, Category 3).
Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers.
USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives.
Removable terminal board with configuration storage provides convenience of configuration backup.
Made with RoHS compliant materials.
Integrated DC Reactor (standard on 30HP and larger) for input harmonic reduction.
Kinetic Energy Braking allows drive to remain in control during momentary power losses.
Integrated 12 Pulse version provides a cost effective solution for low harmonics.
Flange version provides NEMA 12 backside integrity when mounting with heatsink external.

Bảng Model biến tần Yaskawa A1000 loại vào 3pha 380V, ra 3 pha 380V.

Model sản phẩm	Tải thường		Tải nặng
Model sản phẩm	Dòng đầu ra (A)	Công suất (Kw)	Dòng đầu ra (A)	Công suất (Kw)
CIMR-AT4A0002	2.1	0.75	1.8	0.4
CIMR-AT4A0004	4.1	1.5	3.4	0.75
CIMR-AT4A0005	5.4	2.2	4.8	1.5
CIMR-AT4A0007	6.9	3.0	5.5	2.2
CIMR-AT4A0009	8.8	3.7	7.2	3.0
CIMR-AT4A0011	11.1	5.5	9.2	3.7
CIMR-AT4A0018	17.5	7.5	14.8	5.5
CIMR-AT4A0023	23	11	18	7.5
CIMR-AT4A0031	31	15	24	11
CIMR-AT4A0038	38	18.5	31	15
CIMR-AT4A0044	44	22	39	18.5
CIMR-AT4A0058	58	30	45	22
CIMR-AT4A0072	72	37	60	30
CIMR-AT4A0088	88	45	75	37
CIMR-AT4A0103	103	55	91	45
CIMR-AT4A0139	139	75	112	55
CIMR-AT4A0165	165	90	150	75
CIMR-AT4A0208	208	110	180	90
CIMR-AT4A0250	250	132	216	110
CIMR-AT4A0296	296	160	260	132
CIMR-AT4A0362	362	185	304	160
CIMR-AT4A0414	414	220	370	185
CIMR-AT4A0515	515	250	450	220
CIMR-AT4A0675	675	355	605	315
CIMR-AT4A0930	930	500	810	450
CIMR-AT4A1200	1200	630	1090	560

Bảng Model biến tần Yaskawa A1000 loại vào 3 pha 200V, ra 3 pha 200V.

Mã hàng	Tải thường (KW)	Tải nặng (KW)
A1000 [3P/220VAC]
CIMR-AT2A0004	0.75	0.4
CIMR-AT2A0006	1.5	0.75
CIMR-AT2A0008	1.5	1.1
CIMR-AT2A0010	2.2	1.5
CIMR-AT2A0012	3	2.2
CIMR-AT2A0018	3.7	3
CIMR-AT2A0021	5.5	3.7
CIMR-AT2A0030	7.5	5.5
CIMR-AT2A0040	11	7.5
CIMR-AT2A0056	15	11
CIMR-AT2A0069	18.5	15
CIMR-AT2A0081	22	18.5
CIMR-AT2A0110	30	22
CIMR-AT2A0138	37	30
CIMR-AT2A0169	45	37
CIMR-AT2A0211	55	45
CIMR-AT2A0250	75	55
CIMR-AT2A0312	75	75
CIMR-AT2A0360	110	90
CIMR-AT2A0415	–	110
