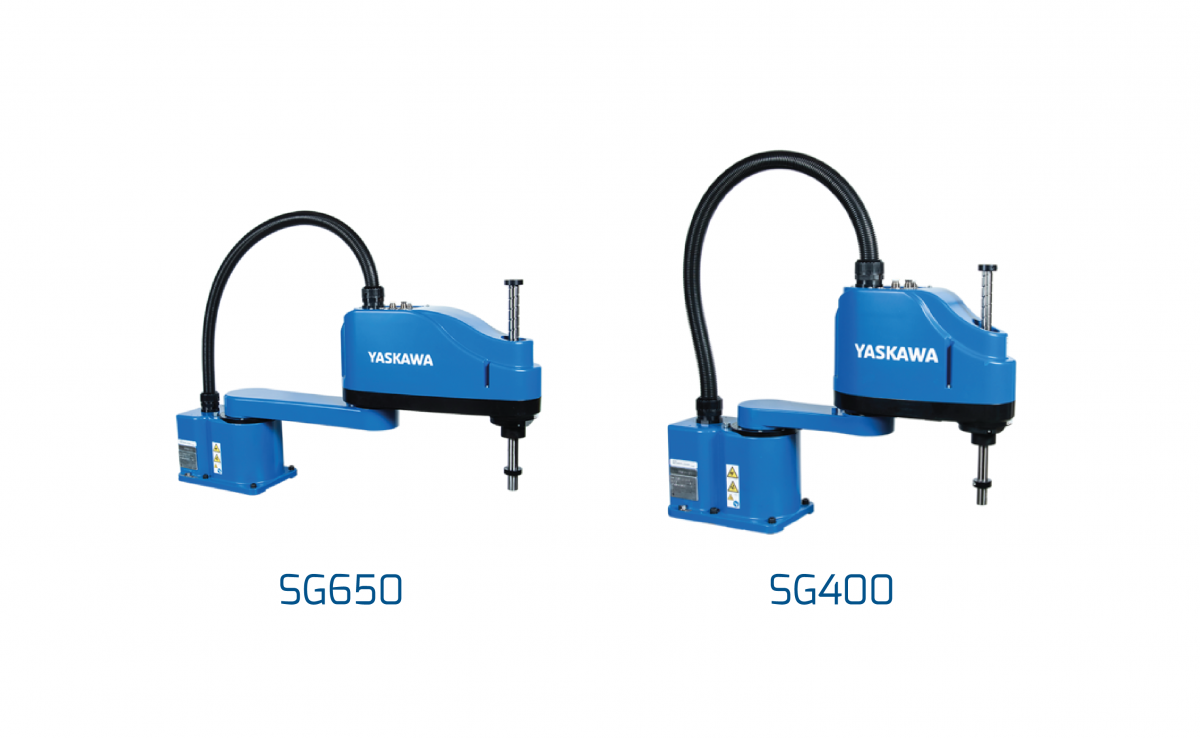

Robot Yaskawa SG400

Designed for fast operating performance, this 4-axis SCARA robot is ideal for increasing throughput for small part processing applications. Highly precise and repeatable, the SG400 is well-suited for assembly and sortation processes needing short cycle times, as well as multi-process systems requiring pick-and-place capability. A compact body design minimizes mounting space and enables easy integration with existing automation.

Robot Yaskawa SG400

The robust MOTOMAN SG400 scara-robot features a wide motion range due to its compact design. It is particularly suitable for application when high speed and accuracy is required, for example picking and packing, dispensing and feeding. Small interference contours allow the robots working together in confined spaces. Internal cabling enables a reliable workflow and saves extensive maintenance.
The SG400 is driven by the compact and lightweight YRC- 1000micro controller.

KEY BENEFITS Robot Yaskawa SG400

• Fast, powerful and reliable
• Wide motion range
• Compact and robust design
• Internal cabling
• High repeatability and accuracy
• Ideal for applications in confined spaces
• Easy integration and high dynamics
• Easy maintenance

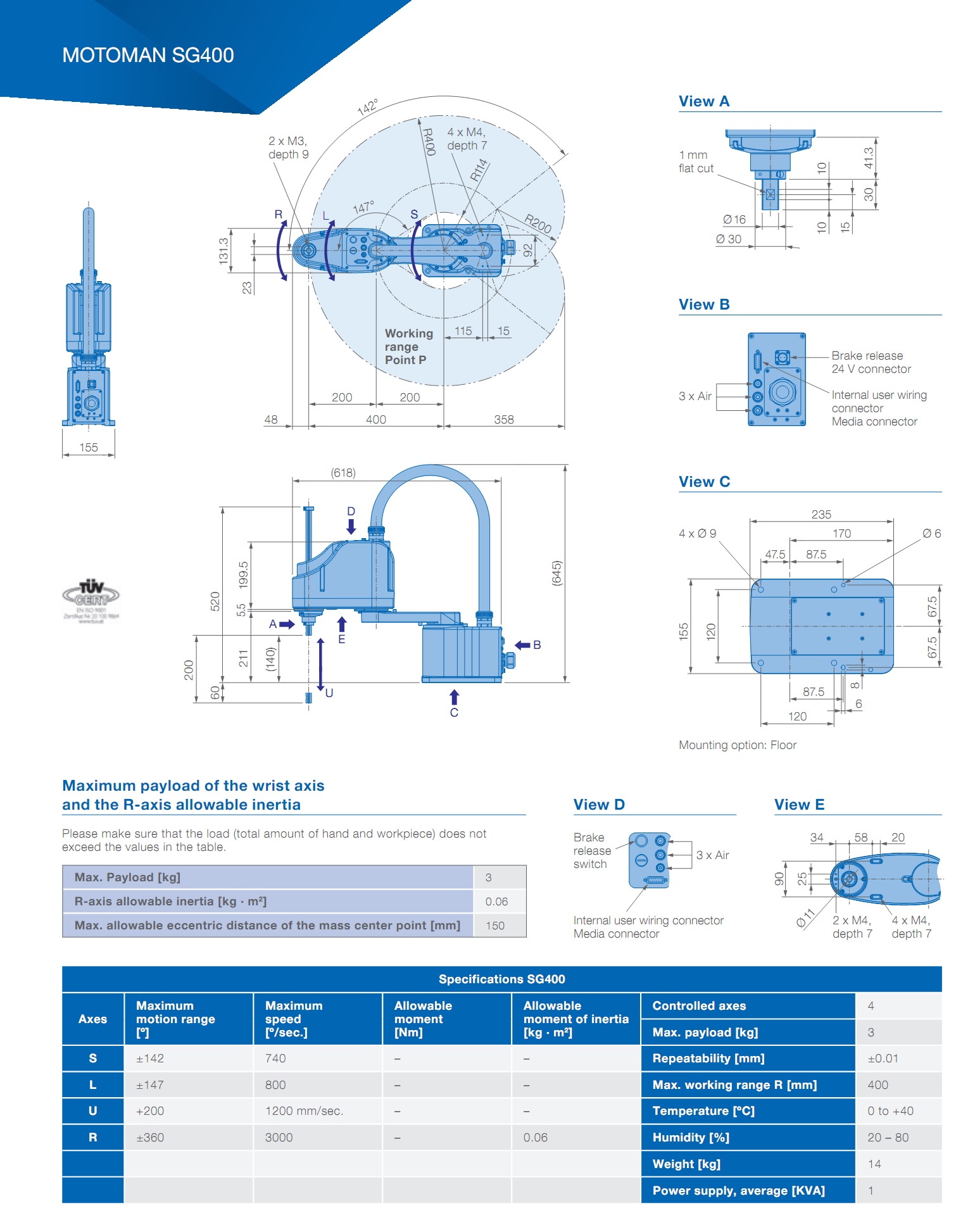

Robot Yaskawa SG400 Specification
