Refer to the OMRON website or ask your OMRON representative for the most recent applicable standards for each model.

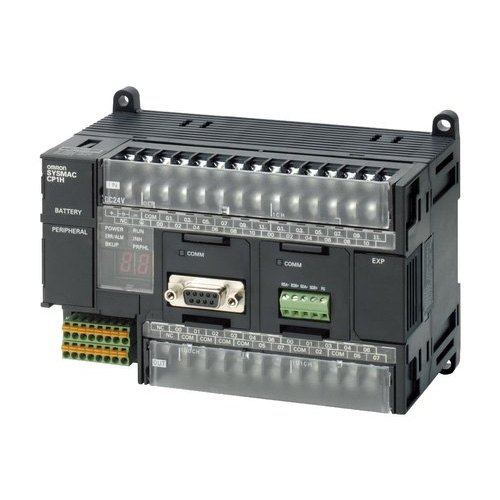

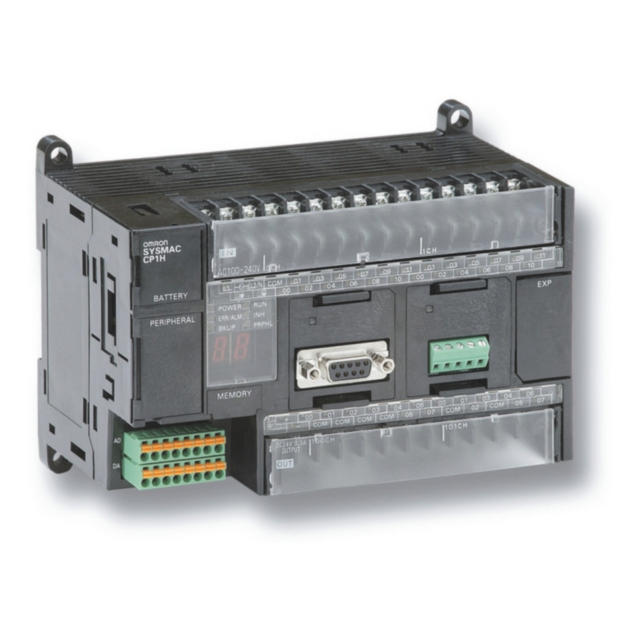

CP1H
CP1H
Applicable standards CP1H
CPU Units CP1H
| CPU UNIT | SPECIFICATIONS | MODEL | ||||
|---|---|---|---|---|---|---|
| CPU TYPE | POWER SUPPLY | OUTPUT METHOD | INPUTS | OUT- PUTS | ||
| CP1H-X CPU UNITS  | MEMORY CAPACITY: 20K STEPS HIGH-SPEED COUNTERS: 100 KHZ, 4 AXES PULSE OUTPUTS: 100 KHZ, 4 AXES (MODELS WITH TRANSISTOR OUTPUTS ONLY) | AC power supply | Relay output | 24 | 16 | CP1H-X40DR-A |
| DC power supply | Transistor output (sinking) | CP1H-X40DT-D | ||||
| Transistor output (sourcing) | CP1H-X40DT1-D | |||||
| CP1H-XA CPU UNITS  | MEMORY CAPACITY: 20K STEPS HIGH-SPEED COUNTERS: 100 KHZ, 4 AXES PULSE OUTPUTS: 100 KHZ, 4 AXES (MODELS WITH TRANSISTOR OUTPUTS ONLY) ANALOG INPUTS: 4 ANALOG OUTPUTS: 2 | AC power supply | Relay output | 24 | 16 | CP1H-XA40DR-A |
| DC power supply | Transistor output (sinking) | CP1H-XA40DT-D | ||||
| Transistor output (sourcing) | CP1H-XA40DT1-D | |||||
| CP1H-Y CPU UNITS  | MEMORY CAPACITY: 20K STEPS HIGH-SPEED COUNTERS: 1 MHZ, 2 AXES 100 KHZ, 2 AXES PULSE OUTPUTS: 1 MHZ, 2 AXES 100 KHZ, 2 AXES | DC power supply | Transistor output (sinking) | 12 + line- driver input, 2 axes | 8 + line- driver output, 2 axes | CP1H-Y20DT-D |
Note: 1. CP1H PLCs are supported by CX-Programmer version 6.1 or higher.
2. Purchase a separately sold Option Unit if you will use RS-232C, RS-422A/485, Ethernet, or LCD.
Options for CPU Units CP1H
| NAME | SPECIFICATIONS | MODEL | |
|---|---|---|---|
| RS-232C OPTION BOARD |  | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-CIF01 |
| RS-422A/485 OPTION BOARD |  | CP1W-CIF11 | |
| RS-422A/485 (ISOLATED-TYPE) OPTION BOARD |  | CP1W-CIF12-V1 | |
| ETHERNET OPTION BOARD |  | Can be mounted in either CPU Unit Option Board slot 1 or 2. * | CP1W-CIF41 |
| LCD OPTION BOARD |  | Can be mounted only in the CPU Unit Option Board slot 1. | CP1W-DAM01 |
| MEMORY CASSETTE |  | Can be used for backing up programs or auto-booting. | CP1W-ME05M |
* When using CP1W-CIF41 Ver.1.0, one Ethernet port can be added.
Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.
Programming Devices CP1H
| NAME | SPECIFICATIONS | MODEL | |||
|---|---|---|---|---|---|
| NUMBER OF LICENSES | MEDIA | ||||
| FA INTEGRATED TOOL PACKAGE CX-ONE LITE VERSION 4.[] | CX-One Lite is a subset of the complete CX-One package that provides only the Support Software required for micro PLC applications. CX-One Lite runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Lite Ver. 4.[] includes Micro PLC Edition CXProgrammer Ver. 9.[]. | 1 license | DVD | CXONE-LT01C-V4 | |
| FA INTEGRATED TOOL PACKAGE CX-ONE VER.4.[] | CX-One is a package that integrates the Support Software for OMRON PLCs and components. CX- One runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[]. | 1 license *3 | DVD | CXONE-AL01D-V4 | |
| PROGRAMMING DEVICE CONNECTING CABLE FOR CP1W-CIF01 RS-232C OPTION BOARD *4 | Connects Personal Computers, D-Sub 9-pin (Length: 2.0 m) | For anti-static connectors | XW2Z-200S-CV | ||
| Connects Personal Computers, D-Sub 9-pin (Length: 5.0 m) | XW2Z-500S-CV | ||||
| Connects Personal Computers, D-Sub 9-pin (Length: 2.0 m) | XW2Z-200S-V | ||||
| Connects Personal Computers, D-Sub 9-pin (Length: 5.0 m) | XW2Z-500S-V | ||||
*1. CP1H PLCs are supported by CX-Programmer version 6.1 or higher.
Update The CX-Programmer version automatically from the website using CX-Programmer version 7.0 (included with
CX-One version 2.0).
*2. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
*3. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
*4. Cannot be used with a peripheral USB port.
To connect to a Personal Computers via a peripheral USB port, use commercially-available USB cable (A or B type,
male).
CX-One version 2.0).
*2. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
*3. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
*4. Cannot be used with a peripheral USB port.
To connect to a Personal Computers via a peripheral USB port, use commercially-available USB cable (A or B type,
male).
The following tables lists the Support Software that can be installed from CX-One
| SUPPORT SOFTWARE IN CX-ONE | CX-ONE LITE VER.4.[] | CX-ONE VER.4.[] | |
|---|---|---|---|
| Micro PLC Edition CX-Programmer | Ver.9.[] | Yes | No |
| CX-Programmer | Ver.9.[] | No | Yes |
| CX-Integrator | Ver.2.[] | Yes | Yes |
| Switch Box Utility | Ver.1.[] | Yes | Yes |
| CX-Protocol | Ver.1.[] | No | Yes |
| CX-Simulator | Ver.1.[] | Yes | Yes |
| CX-Position | Ver.2.[] | No | Yes |
| CX-Motion-NCF | Ver.1.[] | No | Yes |
| CX-Motion-MCH | Ver.2.[] | No | Yes |
| CX-Motion | Ver.2.[] | No | Yes |
| CX-Drive | Ver.1.[] | Yes | Yes |
| CX-Process Tool | Ver.5.[] | No | Yes |
| Faceplate Auto-Builder for NS | Ver.3.[] | No | Yes |
| CX-Designer | Ver.3.[] | Yes | Yes |
| NV-Designer | Ver.1.[] | Yes | Yes |
| CX-Thermo | Ver.4.[] | Yes | Yes |
| CX-ConfiguratorFDT | Ver.1.[] | Yes | Yes |
| CX-FLnet | Ver.1.[] | No | Yes |
| Network Configurator | Ver.3.[] | Yes | Yes |
| CX-Server | Ver.4.[] | Yes | Yes |
Note: For details, refer to the CX-One Catalog (Cat. No: R134).
Expansion Units CP1H
| PRODUCT NAME | INPUTS | OUTPUTS | OUTPUT TYPE | MODEL | |
|---|---|---|---|---|---|
| INPUT UNIT | 8 | — | 24 VDC Input | CP1W-8ED | |
| OUTPUT UNITS  | — | 8 | Relay | CP1W-8ER | |
| Transistor (sinking) | CP1W-8ET | ||||
| Transistor (sourcing) | CP1W-8ET1 | ||||
| — | 16 | Relay | CP1W-16ER | ||
| Transistor (sinking) | CP1W-16ET | ||||
| Transistor (sourcing) | CP1W-16ET1 | ||||
| — | 32 | Relay | CP1W-32ER | ||
| Transistor (sinking) | CP1W-32ET | ||||
| Transistor (sourcing) | CP1W-32ET1 | ||||
I/O UNITS | 12 | 8 | Relay | CP1W-20EDR1 | |
| Transistor (sinking) | CP1W-20EDT | ||||
| Transistor (sourcing) | CP1W-20EDT1 | ||||
| 24 | 16 | Relay | CP1W-40EDR | ||
| Transistor (sinking) | CP1W-40EDT | ||||
| Transistor (sourcing) | CP1W-40EDT1 | ||||
| ANALOG INPUT UNIT  | 4CH | — | Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20mA, or 4 to 20 mA. | Resolution: 1/6000 | CP1W-AD041 |
| Resolution: 1/12000 | CP1W-AD042 | ||||
| ANALOG OUTPUT UNIT  | — | 2CH | Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. | Resolution: 1/6000 | CP1W-DA021 |
| — | 4CH | Resolution: 1/6000 | CP1W-DA041 | ||
| Resolution: 1/12000 | CP1W-DA042 | ||||
| ANALOG I/O UNIT  | 4CH | 4CH | Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. | Resolution: 1/12000 | CP1W-MAD44 |
| 4CH | 2CH | Resolution: 1/12000 | CP1W-MAD42 | ||
| 2CH | 1CH | Resolution: 1/6000 | CP1W-MAD11 | ||
| TEMPERATURE SENSOR UNIT  | 2CH | — | Sensor type: Thermocouple (J or K) | CP1W-TS001 | |
| 4CH | — | Sensor type: Thermocouple (J or K) | CP1W-TS002 | ||
| 2CH | — | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS101 | ||
| 4CH | — | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS102 | ||
| 4CH | — | Sensor type: Thermocouple (J or K) 2 channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA | Resolution: 1/12000 | CP1W-TS003 | |
| 12CH | — | Sensor type: Thermocouple (J or K) | CP1W-TS004 | ||
| COMPOBUS/S I/O LINK UNIT  | 8 | 8 | CompoBus/S slave | CP1W-SRT21 | |
I/O Connecting Cable CP1H
| NAME | SPECIFICATIONS | MODEL |
|---|---|---|
| I/O CONNECTING CABLE | 80 cm (for CP1W Expansion Units) | CP1W-CN811 |
Note: An I/O Connecting Cable (approx. 6 cm) for horizontal connection is provided with CP1W Expansion Units.
Optional Products, Maintenance Products and DIN Track Accessories
| NAME | SPECIFICATIONS | MODEL | |
|---|---|---|---|
| BATTERY SET | For CP1H CPU Units (Use batteries within two years of manufacture.) | CJ1W-BAT01 | |
| DIN TRACK | Length: 0.5 m; Height: 7.3 mm | PFP-50N | |
| Length: 1 m; Height: 7.3 mm | PFP-100N | ||
| Length: 1 m; Height: 16 mm | PFP-100N2 | ||
| END PLATE | There are 2 stoppers provided with a CJ Unit Adapter as standard accessories to secure the Units on the DIN Track. | PFP-M | |
CJ-series Special I/O Units and CPU Bus Units CP1H
| CATEGORY | NAME | SPECIFICATIONS | MODEL | |
|---|---|---|---|---|
| CP1H CPU UNIT OPTIONS | CJ UNIT ADAPTER | Adapter for connecting CJ-series Special I/O Units and CPU Bus Units (includes CJ-series End Cover and 2 End Plates) | CP1W-EXT01 | |
| CJ1 SPECIAL I/O UNITS | ANALOG INPUT UNITS | 4 inputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), -5 to 5 V (1/20,000), -10 to 10 V (1/40,000), and 4 to 20 mA (1/10,000)) Conversion Period: 20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points | CJ1W-AD042 | |
| 8 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 μs/ input max. (Can be set to 1/4,000 resolution and 1 ms/input.) | CJ1W-AD081-V1 | |||
| 4 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 μs/ input max. (Can be set to 1/4,000 resolution and 1 ms/input.) | CJ1W-AD041-V1 | |||
| ANALOG OUTPUT UNITS | 4 outputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), and -10 to 10 V (1/40,000) Conversion Period: 20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points | CJ1W-DA042V | ||
| 8 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8000, 250 μs/output.) | CJ1W-DA08V | |||
| 8 outputs (4 to 20 mA) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8,000, 250 μs/ output.) | CJ1W-DA08C | |||
| 4 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max. | CJ1W-DA041 | |||
| 2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max. | CJ1W-DA021 | |||
| ANALOG I/O UNIT | 4 inputs, 2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4000; Conversion speed: 1 ms/point max. (Can be set to 1/8,000, 500 μs/point.) | CJ1W-MAD42 | ||
| PROCESS INPUT UNITS | 4 fully universal inputs: Pt100 (3-wire), JPt100 (3- wire), Pt1000 (3-wire), Pt100 (4 wire), K, J, T, E, L, U, N, R, S, B, WRe5-26, PLII, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 1.25 V, 0 to 5 V, 0 to 10 V, ±100-mV selectable range, -1.25 to 1.25 V, -5 to 5 V, -10 to 10 V, ±10-V selectable range Potentiometer resolution/conversion speed: 1/256,000 (conversion cycle: 60 ms/4 points), 1/64,000 (conversion cycle: 10 ms/4 points), 1/16,000 (conversion cycle: 5 ms/4 points) | CJ1W-PH41U * | ||
| 4 fully universal inputs: Pt100, JPt100, Pt1000, K, J, T, L, R, S, B, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 V Conversion speed: 250 ms/4 points | CJ1W-AD04U | |||
| 4 inputs, B, J, K, L, R, S, T; Conversion speed: 250 ms/4 inputs | CJ1W-PTS51 | |||
| 4 inputs, Pt100 Ω (JIS, IEC), JPt100 Ω, Conversion speed: 250 ms/4 inputs | CJ1W-PTS52 | |||
| 2 inputs, B, E, J, K, L, N, R, S, T, U, W, Re5-26, PL ±100 mV, Resolution: 1/64,000; Conversion speed: 10 ms/2 inputs | CJ1W-PTS15 | |||
| 2 inputs, 0 to 1.25 V, -1.25 to 1.25 V, 0 to 5 V, 1 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V, ±10-V selectable range, 0 to 20 mA, 4 to 20 mA | CJ1W-PDC15 | |||
| TEMPERATURE CONTROL UNITS | 4 loops, thermocouple input, NPN output | CJ1W-TC001 | ||
| 4 loops, thermocouple input, PNP output | CJ1W-TC002 | |||
| 2 loops, thermocouple input, NPN output, heater burnout detection function | CJ1W-TC003 | |||
| 2 loops, thermocouple input, PNP output, heater burnout detection function | CJ1W-TC004 | |||
| 4 loops, platinum resistance thermometer input, NPN output | CJ1W-TC101 | |||
| 4 loops, platinum resistance thermometer input, PNP output | CJ1W-TC102 | |||
| 2 loops, platinum resistance thermometer input, NPN output, heater burnout detection function | CJ1W-TC103 | |||
| 2 loops, platinum resistance thermometer input, PNP output, heater burnout detection function | CJ1W-TC104 | |||
| HIGH-SPEED COUNTER UNIT | 2 inputs, max. input frequency: 500 kpps | CJ1W-CT021 | ||
| POSITION CONTROL UNITS | Pulse train, open collector output, 1 axis | CJ1W-NC113 | ||
| Pulse train, open collector output, 2 axes | CJ1W-NC213 | |||
| Pulse train, open collector output, 4 axes | CJ1W-NC413 | |||
| Pulse train, line driver output, 1 axis | CJ1W-NC133 | |||
| Pulse train, line driver output, 2 axes | CJ1W-NC233 | |||
| Pulse train, line driver output, 4 axes | CJ1W-NC433 | |||
| SPACE UNIT | — | CJ1W-SP001 | ||
| ID SENSOR UNITS | For V680 Series, 1 R/W Head | CJ1W-V680C11 | ||
| For V680 Series, 2 R/W Heads | CJ1W-V680C12 | |||
| For V600 Series, 1 R/W Head | CJ1W-V600C11 | |||
| For V600 Series, 2 R/W Heads | CJ1W-V600C12 | |||
| COMPONET MASTER UNIT | Word slaves: 2,048 points, Bit slaves: 512 points | CJ1W-CRM21 | ||
| COMPOBUS/S MASTER UNIT | CompoBus/S remote I/O, 256 points max. | CJ1W-SRM21 | ||
| CJ1 CPU BUS UNITS | CONTROLLER LINK UNITS | Wired (shielded twisted-pair cable) | CJ1W-CLK23 | |
| SERIAL COMMUNICATIONS UNITS | 1 RS-232C port and 1 RS-422A/485 port | CJ1W-SCU42 | ||
| 2 RS-232C ports | CJ1W-SCU22 | |||
| 2 RS-422A/485 ports | CJ1W-SCU32 | |||
| 1 RS-232C port and 1 RS-422A/485 port | CJ1W-SCU41-V1 | |||
| 2 RS-232C ports | CJ1W-SCU21-V1 | |||
| 2 RS-422A/485 ports | CJ1W-SCU31-V1 | |||
| ETHERNET/IP UNIT | Shielded twisted-pair cable (STP), category 5 or 5e or higher Tag data links and message communications supported | CJ1W-EIP21 | ||
| ETHERNET UNIT | 100Base-TX | CJ1W-ETN21 | ||
| DEVICENETTM UNIT | Functions as master and/or slave; allows control of 32,000 points max. per master | CJ1W-DRM21 | ||
| MECHATROLINK-II POSITION CONTROL UNIT | Control commands sent using MECHATROLINK-II synchronized communications 16 axes max., direct operation from ladder diagram, control modes: position/ speed/torque | 2 axes | CJ1W-NC271 | |
| 4 axes | CJ1W-NC471 | |||
| 16 axes | CJ1W-NCF71 | |||
| 16 axes | CJ1W-NCF71-MA | |||
| FL-NET UNIT | 100Base-TX | CJ1W-FLN22 | ||
| SPU | High-speed Data Storage Unit | CJ1W-SPU01-V2 | ||
* If a CJ1W-PH41U is used, do not use a CP1H CPU Unit with relay contact outputs or Expansion Units with relay contact outputs.
Note: Refer to the CJ1 catalog (Cat. No. P052) for information on the CJ1 Special I/O Units.
Industrial Switching Hubs CP1H
| PRODUCT NAME | APPEAR- ANCE | SPECIFICATIONS | ACCESSORIES | CURRENT CON- SUMP- TION (A) | MODEL | ||
|---|---|---|---|---|---|---|---|
| FUNCTIONS | NO. OF PORTS | FAILURE DETEC- TION | |||||
| INDUSTRIAL SWITCHING HUBS |  | Quality of Service (QoS): EtherNet/IP™ control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation | 3 | No | Power supply connector | 0.22 | W4S1-03B |
 | 5 | No | 0.22 | W4S1-05B | |||
| 5 | Yes | Power supply connector Connector for informing error | 0.22 | W4S1-05C | |||
last update: September 1, 2020
